Scraper Conveyor

Scraper Conveyor

1.Scraper Conveyor: Ideal for edible oil industry, semi/fully closed design prevents pollution when conveying floating/high-temperature materials.

2.8-18 m³/h capacity (sunflower kernels): Supports stable horizontal/inclined conveying, meets diverse production scale needs.

3.Reliable drive system: Composed of geared motor, chain & sprocket, stable operation, low maintenance, improves working conditions.

4. Flexible customization: Multi-point feeding/unloading, size tailored to requirements, perfect for integrated production lines.

  • tuitecj0
  • instagram (1)2kh
    Contact us

    Service station over the country.

    Provide relevant business resources for free overseas.

    product details

    product description

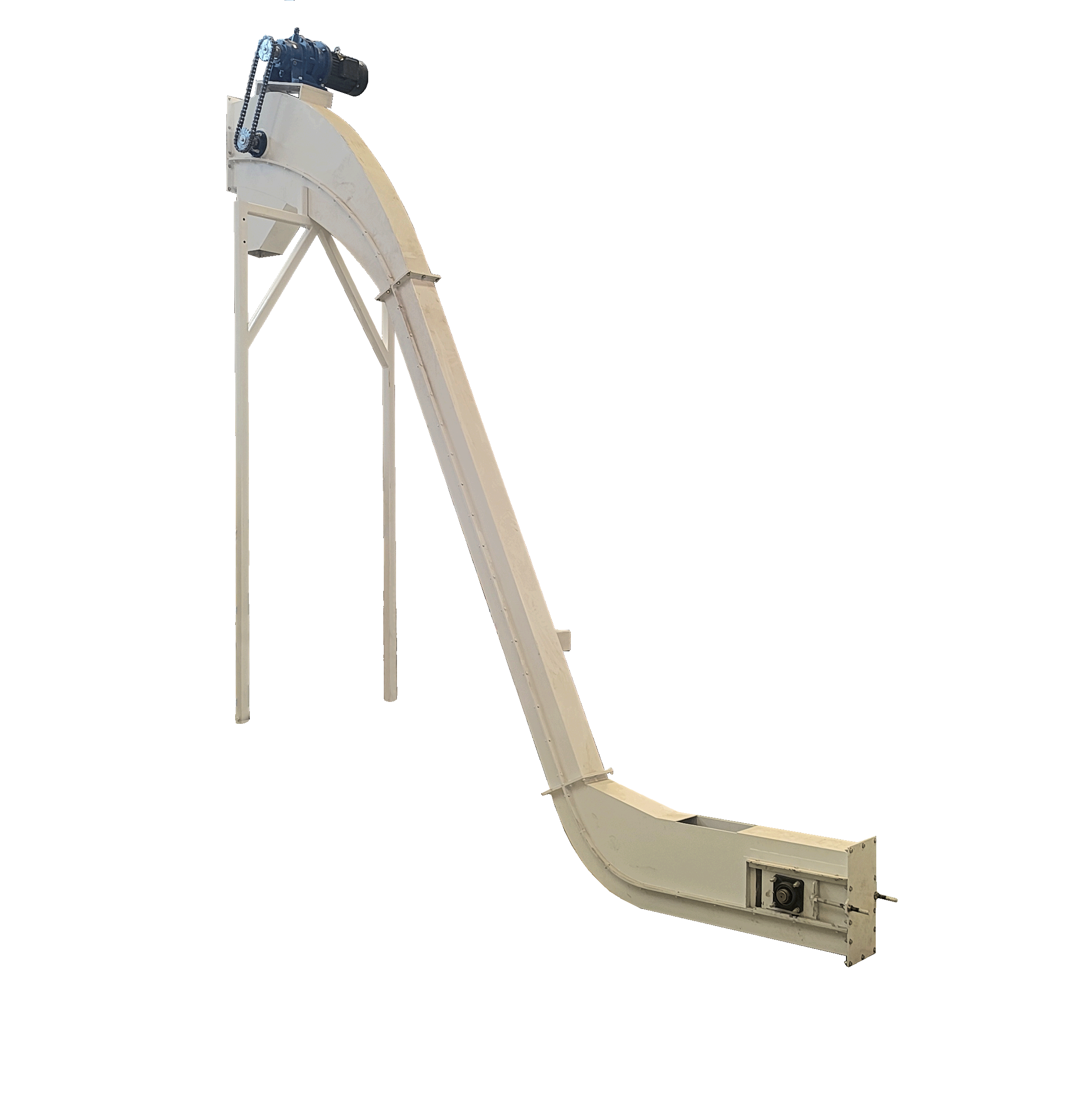

    Scraper Conveyor: Enclosed Material Conveying Solution for Edible Oil Pressing Lines
    1.Enclosed Design Protects Environment & Workers
    Available in semi-closed and fully closed types, it conveys materials in sealed rectangular shells made of carbon steel paint. It effectively prevents dust pollution and improves working conditions when transporting floating or high-temperature materials, perfectly fitting the edible oil industry’s needs.
    2.Stable Drive System Ensures Reliable Operation
    Composed of a geared motor, transmission chain and sprocket, it features a simple structure and low maintenance requirements. The stable drive ensures continuous material conveying, reducing downtime and boosting the overall efficiency of the oil pressing production line.
    3.Flexible Conveying & Customizable Configuration
    Supports horizontal and inclined conveying, with multi-point feeding and unloading functions for flexible process layout. Equipment size can be fully customized according to on-site requirements, seamlessly integrating into different scales of edible oil processing lines.
    4.High-Capacity Performance for Efficient Production
    With an output of 8–18 m³/h for sunflower kernels, it meets the material transfer needs of medium and large-scale oil pressing projects. Its reliable performance optimizes material flow, reduces manual handling costs and serves as a key auxiliary device for edible oil production.

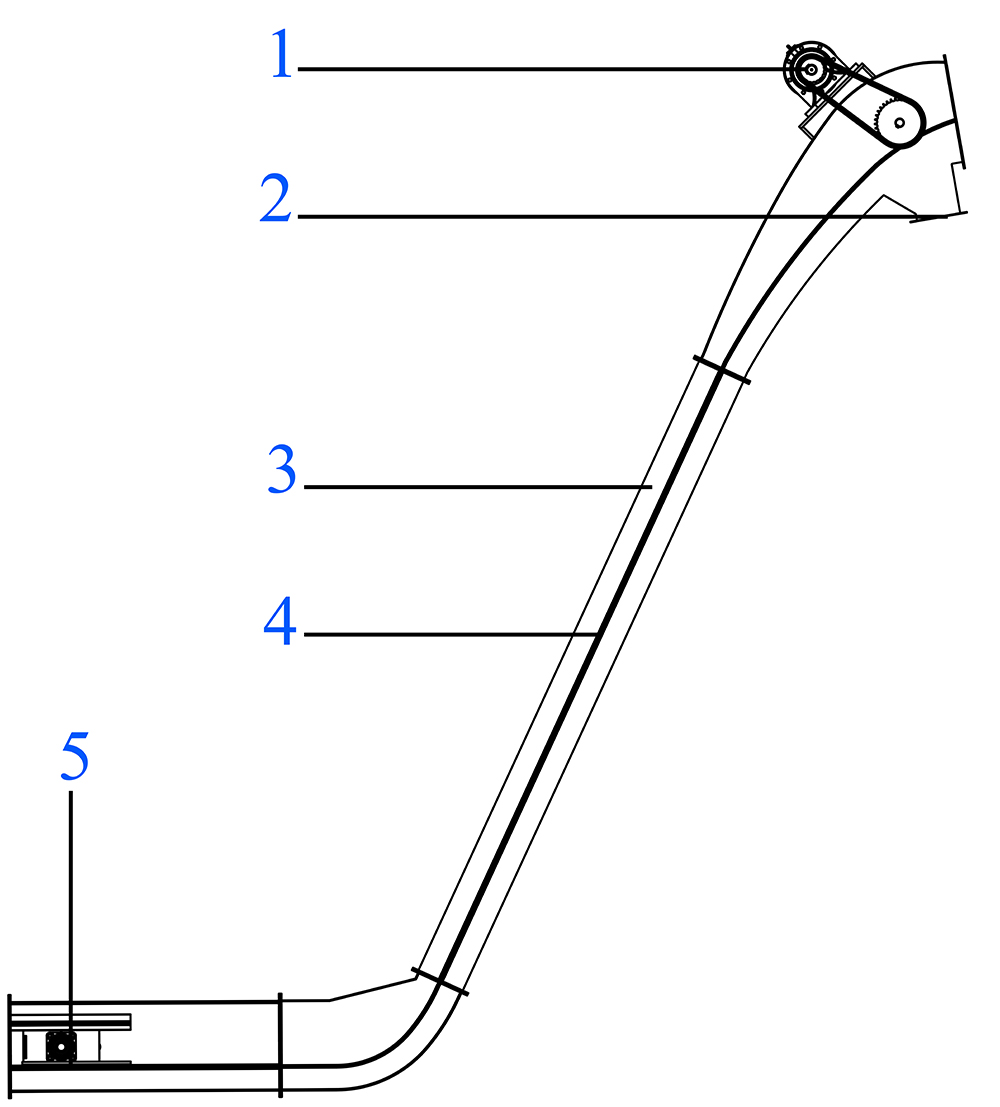

    The Scraper Conveyor (1)1fl

    1. Motor

    2. Discharge port

    3. Fuselage

    4. Chain

    5. Adjust the screw

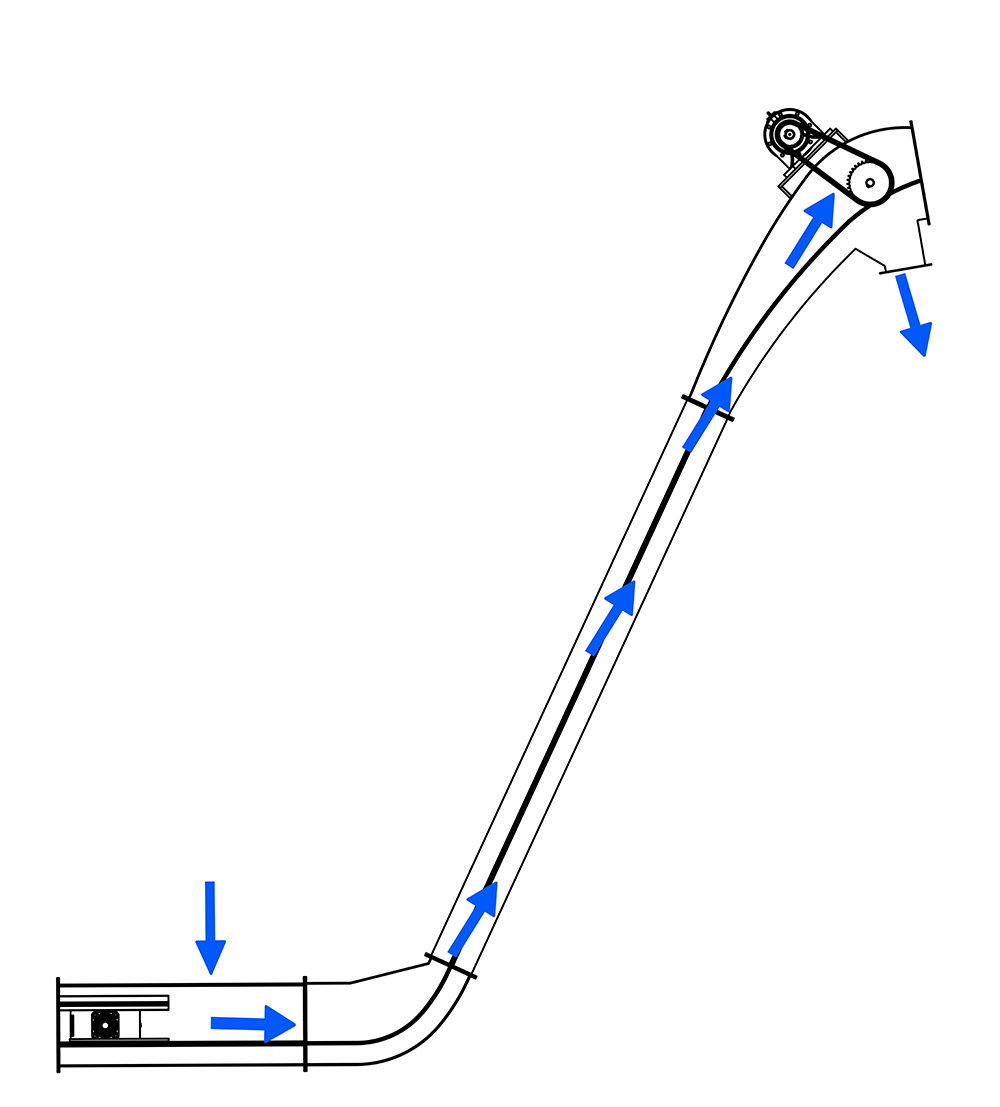

    The Scraper Conveyor (2)zr7

    Product Features

    175 Model Grain De-Stoner (2)7wp

    1.Optimized design, reasonable and stable structure, and simple operation.

    2.Long service life and easy maintenance.

    3.Widely applicable and flexible.

    4.Strong sealing performance; suitable for horizontal and inclined conveying.

    5.Multi-point feeding and material handling.

    Model Parameters

    The Scraper Conveyor

    Model

    Power(kW)

    Voltage(V)

    Linear velocity(m/s)

    Scraper spacing(mm)

    Output m³/h

    (Sunflower seed kernel)

    Maximum inclination ≤

    SG160

    2.4-4

    380

    0.16-0.24

    63.5-100

    1.5-5

    75

    SG200

    3-5.5

    380

    0.16-0.24

    63.5-100

    4.12

    75

    SG250

    4-7.5

    380

    0.16-0.24

    100

    8-18

    75

    *More models can be matched according to the output
