Oil seeds Vertical Electric Cooker
1.Oil Seeds Vertical Electric Cooker: Roasts sunflower seeds, rapeseed & other oil extraction raw materials, ideal for oil processing lines.
2.Patented tech: Shorter preheating/cooling time, lower energy consumption, cuts production costs effectively.
3.4 customizable layers: 5–50min adjustable toasting time, 380℃ max temp per layer for uniform roasting.
4.800 kg/h capacity: Electric-powered with zero emissions, eco-friendly & compliant with environmental standards.
Service station over the country.
Provide relevant business resources for free overseas.
product description
Oil seeds Vertical Electric Cooker: High-Efficiency Eco-Friendly Roasting Equipment for Oil Extraction Raw Materials
1.Wide Raw Material Compatibility
Specialized in roasting oil extraction raw materials including sunflower seeds, rapeseed, linseed and millet. Its uniform heating ensures consistent roasting quality, laying a solid foundation for high oil yield and premium oil quality in subsequent processing.
2.Patented Tech Cuts Energy Costs
Adopts advanced patented technology to shorten preheating and cooling time significantly. Lower energy consumption reduces daily production costs, making it a cost-effective choice for medium and large-scale oil processing plants.
3.Customizable Multi-Layer Roasting Design
Features 1–4 customizable vertical layers with independent temperature control up to 380°C. Roasting time is adjustable between 5–50 minutes, realizing continuous top-to-bottom processing to match diverse production process requirements.
4.Eco-Friendly & High-Capacity Performance
Powered by electricity with zero emissions, fully complying with environmental protection standards. Boasting an 800 kg/h capacity, it ensures stable continuous operation, perfectly integrating into oil processing production lines for efficient mass production.

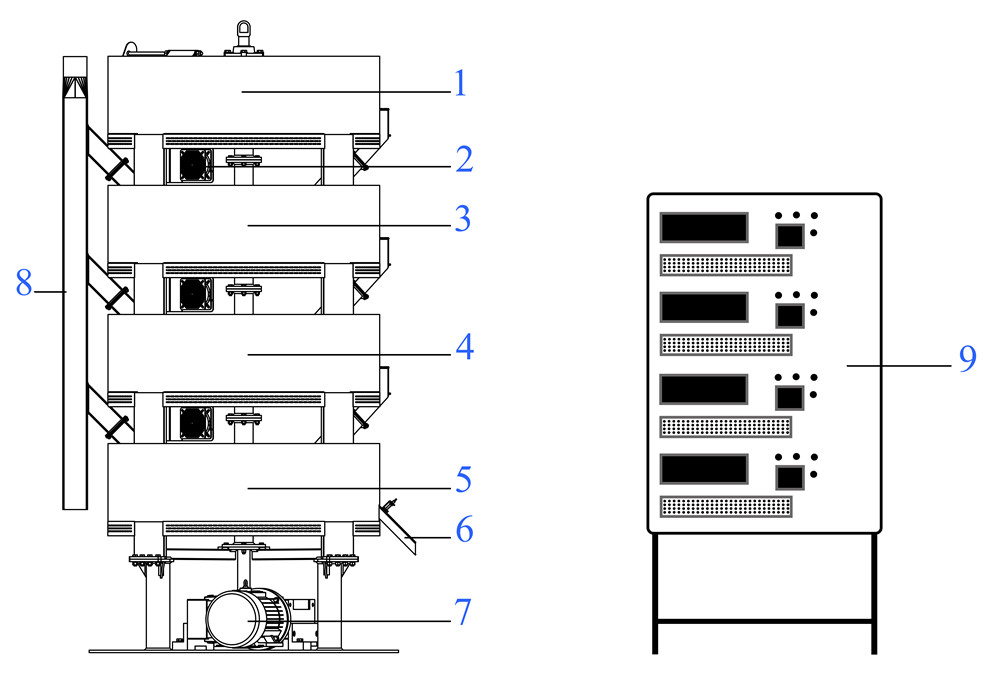

1. First Layer
2. Heat Sink
3. Second Layer
4. Third Layer
5. Forth Layer
6. Outlet
7. Motor
8. Exhaust
9. Power Cabinet
Product Features
1.Customizable layers
2.Easy heating
3.Energy-saving and environmentally friendly
4.Even toasting of materials
5.Continuous toasting
6.Low failure rate and easy maintenance
7.High level of automation
Model Parameters
| OILSEEDS VERTICALELECTRIC COOKER | ||||
| Dimension(L*W*H)'m | 1.3*1.52*1.5 | 1.3*1.52*1.75 | 1.3*1.52*2.4 | 1.3*1.52*3 |
| Capacity(kg/h) | 200 | 400 | 600 | 800 |
| Weight(t) | 0.75 | 1.5 | 2.25 | 3 |
| Currents (A) | 45 | 90 | 135 | 180 |
| Power motor (kW) | 2.2 | 4 | 5.5 | 7.5 |
| Eleetronie cabinet(L*W*Hym | 0.55*0.45*0.25 | 0.76*0.55*0.65 | 0.76*0.55*0.95 | 0.76*0.55*1.28 |
| Power (kW) | 30 | 60 | 90 | 120 |
| Voltage(V) | 380 | 380 | 380 | 380 |
