Non-Broken Elevator
Non-Broken Elevator
Non-Broken Elevator
Non-Broken Elevator
Non-Broken Elevator

Non-Broken Elevator

1.Non-Broken Elevator: Zero breakage rate via chain-driven transport, protecting the integrity of easily breakable materials.

2.Versatile material compatibility: Ideal for sunflower seeds, kernels, grains, nuts, food & herbal materials transportation.

3.Dual conveying modes: Supports both vertical and horizontal transport, adaptable to single or multi-unit line integration.

4.Fully customizable: Lift height, horizontal length & carbon steel/stainless steel options meet diverse production needs.

  • tuitecj0
  • instagram (1)2kh
    Contact us

    Service station over the country.

    Provide relevant business resources for free overseas.

    product details

    PRODUCT DESCRIPTION

    Non-Broken Elevator: Commercial Non-Destructive Material Conveying Solution for Fragile Products
    1.Core Advantage: Zero Breakage Rate Protects Material Integrity
    As the flagship feature of this elevator, the zero breakage rate is achieved through advanced chain-driven transport technology. Operated at a controlled slow speed, it ensures no direct contact between materials and the transmission system—effectively safeguarding the integrity of easily breakable products. This design avoids material damage during conveying, maintaining the commercial value of finished goods, which is critical for high-value materials like seeds and kernels.

    2.Wide Compatibility for Diverse Fragile Materials
    Expertly engineered for transporting fragile materials, this non-broken elevator is ideal for sunflower seeds, kernels, nuts, grains, food products, and herbal materials. Its gentle conveying method adapts to the physical characteristics of different fragile items, making it a versatile solution for agricultural processing, food production, and herbal processing industries.

    3.Flexible Conveying Modes & Line Integration
    Supporting both vertical and horizontal material transportation, the elevator meets diverse layout needs of production lines. It can be used as a single unit or combined into multi-unit systems to accommodate single or multiple feeding/discharging points. Specifically, the T-type model enables combined feeding (including main feeding and return material lifting), further enhancing its adaptability to complex production workflows.

    4.Fully Customizable Design for Personalized Needs
    To match various production requirements, the lift height and horizontal conveying length can be fully customized. Additionally, customers can choose between carbon steel and stainless steel structures—stainless steel options are ideal for food and pharmaceutical industries requiring strict hygiene standards. This customizable design ensures the elevator seamlessly fits into different production scales and industry-specific demands.
    Non-Broken Elevator (8)rkz

    1. Passive roller

    2. Slide plate

    3. Adjustive screw

    4. Leg

    5. Side plate

    6. Splint

    7. Geared motor

    8. Drive roller

    Non-Broken Elevator (9)29o

    Product Features

    Non-Broken Elevator (4)hba

    Zero broken rate

    Applicable to wide range of materials

    High stable

    Low energy consumption

    Durable

    Applicable structures

    Model Parameters

    NON-BROKEN ELEVATOR

    Model

    Dimension
    (L * W * H)/m

    Capacity (m³/h)
    *For sunflower seeds

    Power

    (kW)

    C-type (Small)

    2.4*0.56*0.90

    3.75

    0.75

    C-type (Medium)

    2.40*0.69*0.90

    6

    0.75

    C-type (Large)

    2.40*0.89*0.90

    12

    1.5

    C-type (Extra large)

    2.40*1.16*0.90

    20

    2.2

    T-type (Small)

    3.42*0.56*0.90

    3.75

    0.75

    T-type (Medium)

    3.42*0.69*0.90

    6

    0.75

    T-type (Large)

    3.42*0.89*0.90

    12

    1.5

    T-type ( Extra large)

    3.42*1.16*0.90

    20

    2.2

    Z-type (Small)

    1.88*0.56*0.90

    3.75

    0.75

    Z-type (Medium)

    1.88*0.69*0.90

    6

    0.75

    Z-type (Large)

    1.88*0.89*0.90

    12

    1.5

    Z-type (Extra large)

    1.88*1.16*0.90

    20

    2.2

    Voltage (V) : 380

    Note: The height of the product refers to the height of the base in the table; The actual length and height can be customized according to the installation site.

    Video

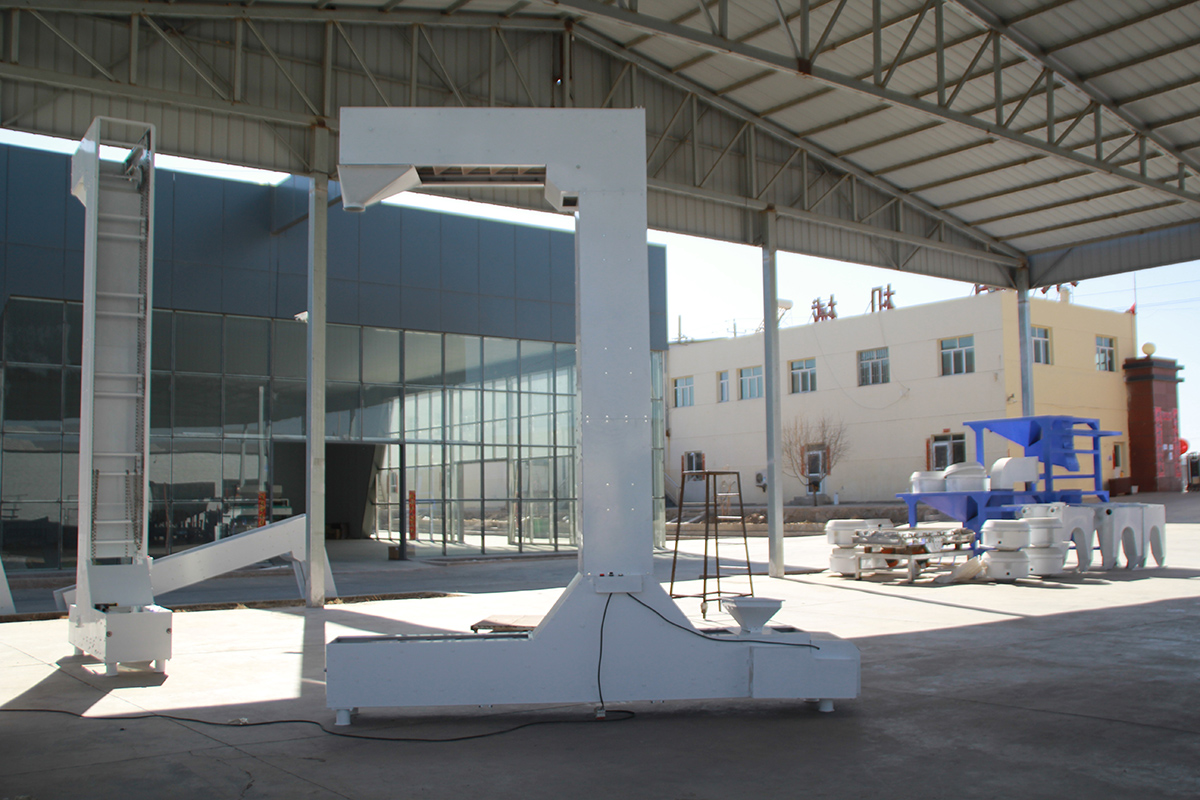

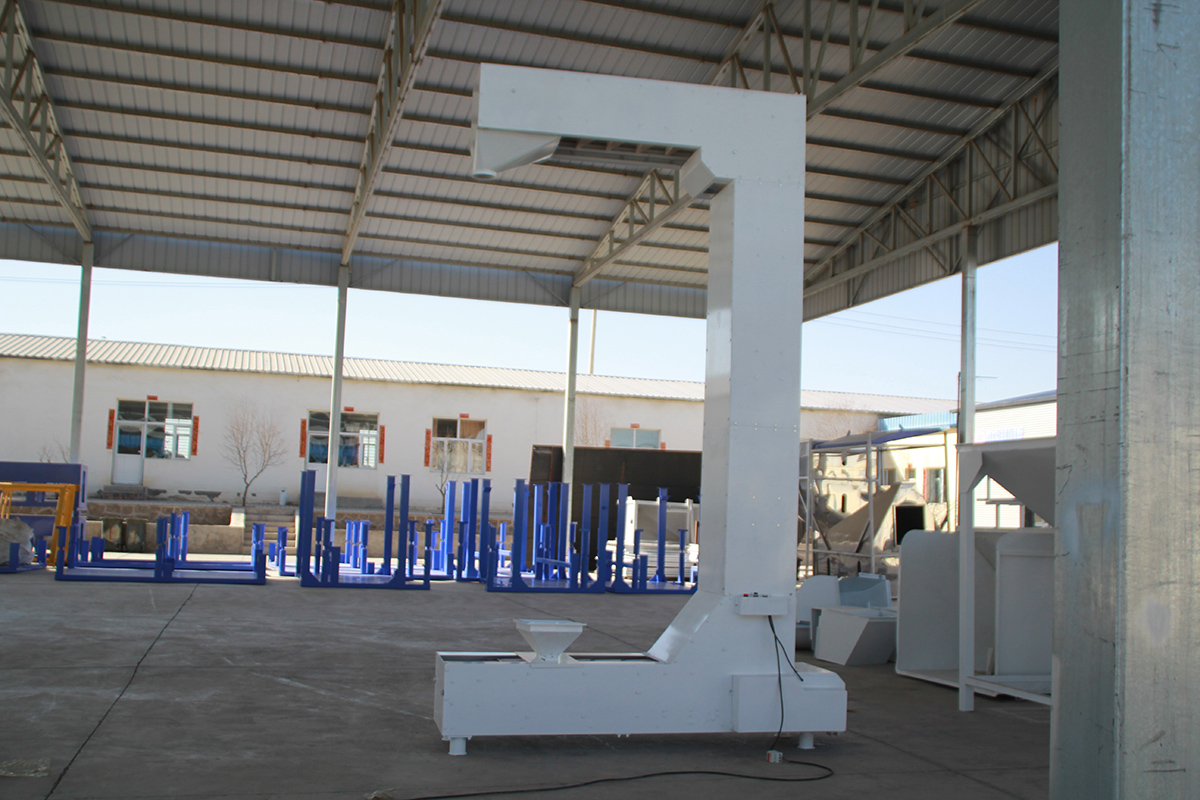

    Product case

    IMG_87436xe
    img_87437o
    IMG_8874gxy
    IMG_8883g3b
    IMG_8890mhh
    IMG_88961st

    Product detail

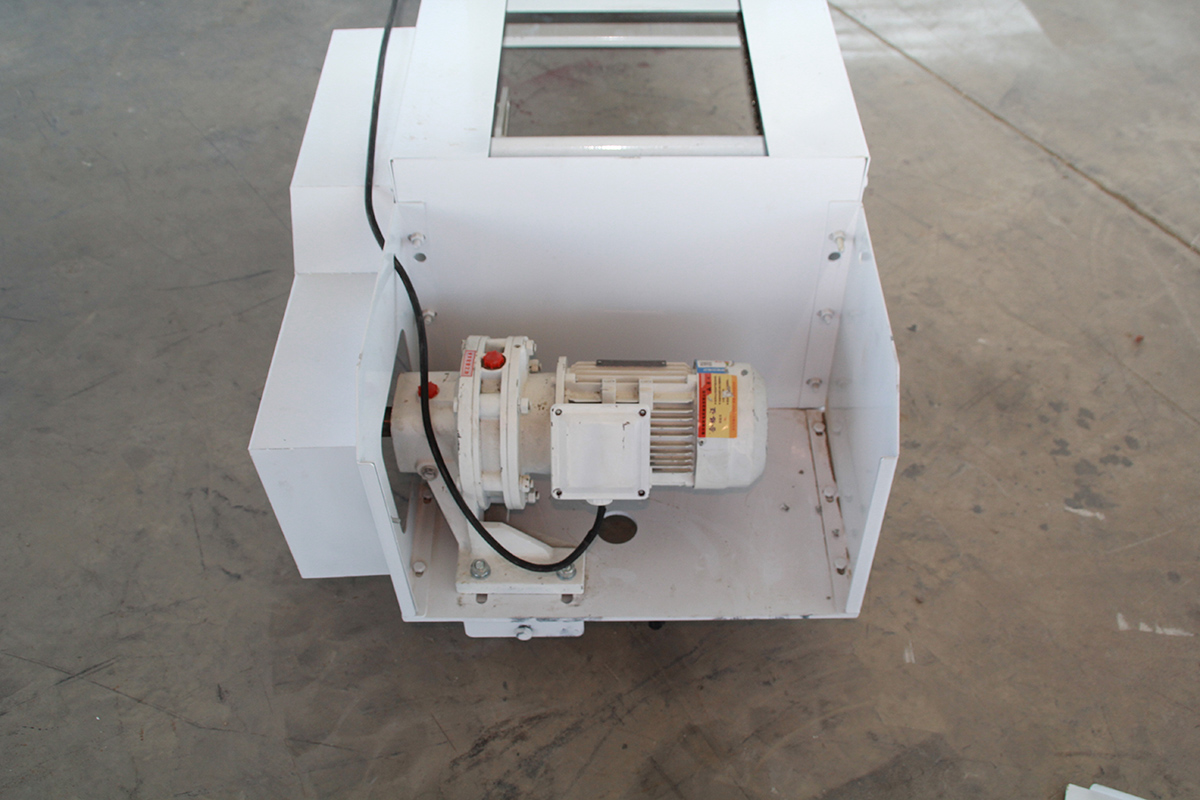

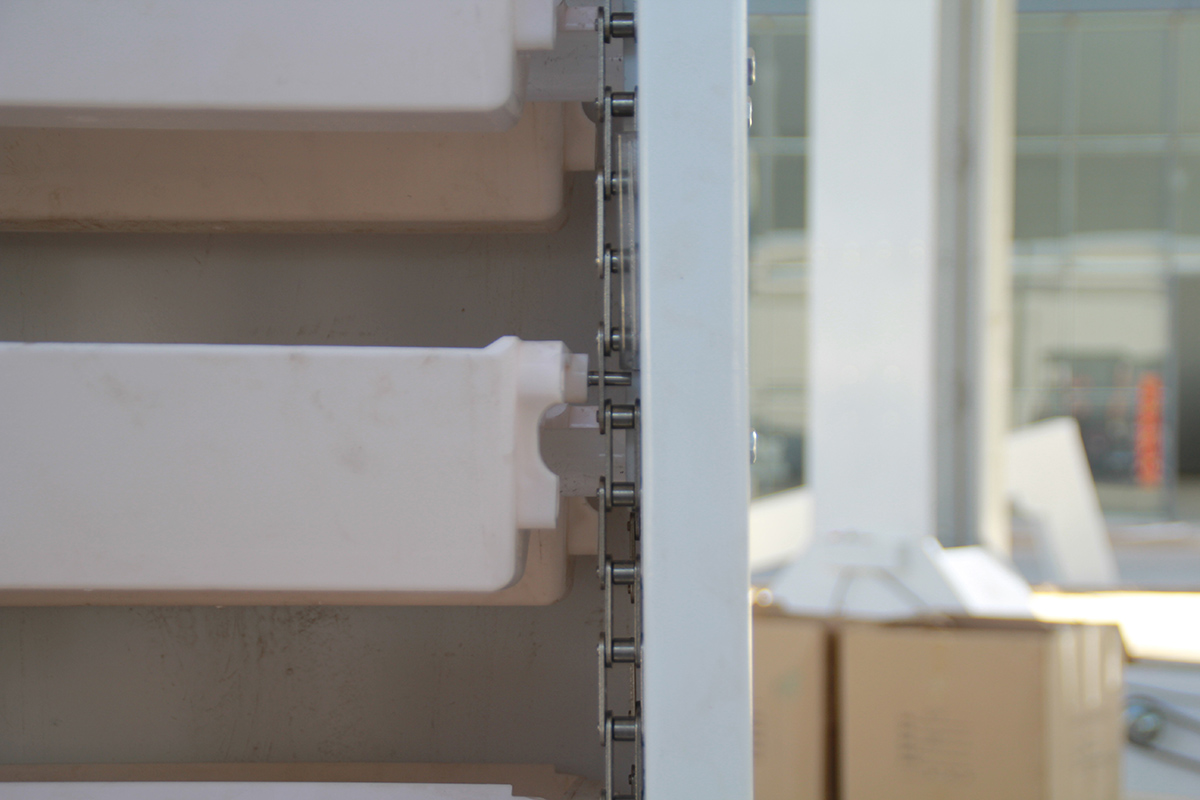

    Non-Broken Elevator (1)t6o
