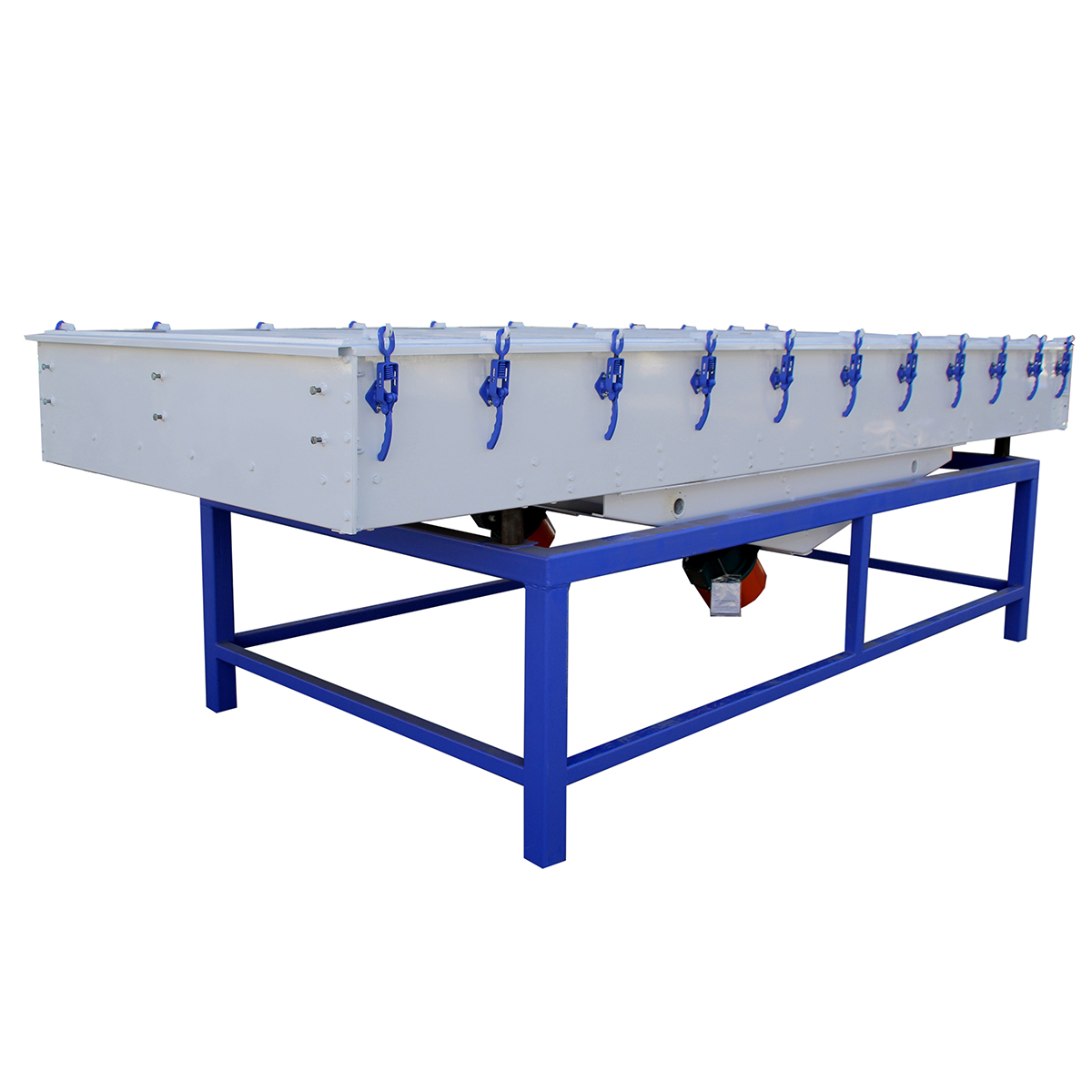

Grain Grade Cleaner
Vibro separator is suitable for efficient tbl_serviceing & grading of all types of grains and seeds, pulses, oil seeds, etc. Industrial Vibro Separator Machine is used to separate out impurities, which are bigger / smaller than seed size along.
Service station over the country.
Provide relevant business resources for free overseas.
PRODUCT DESCRIPTION

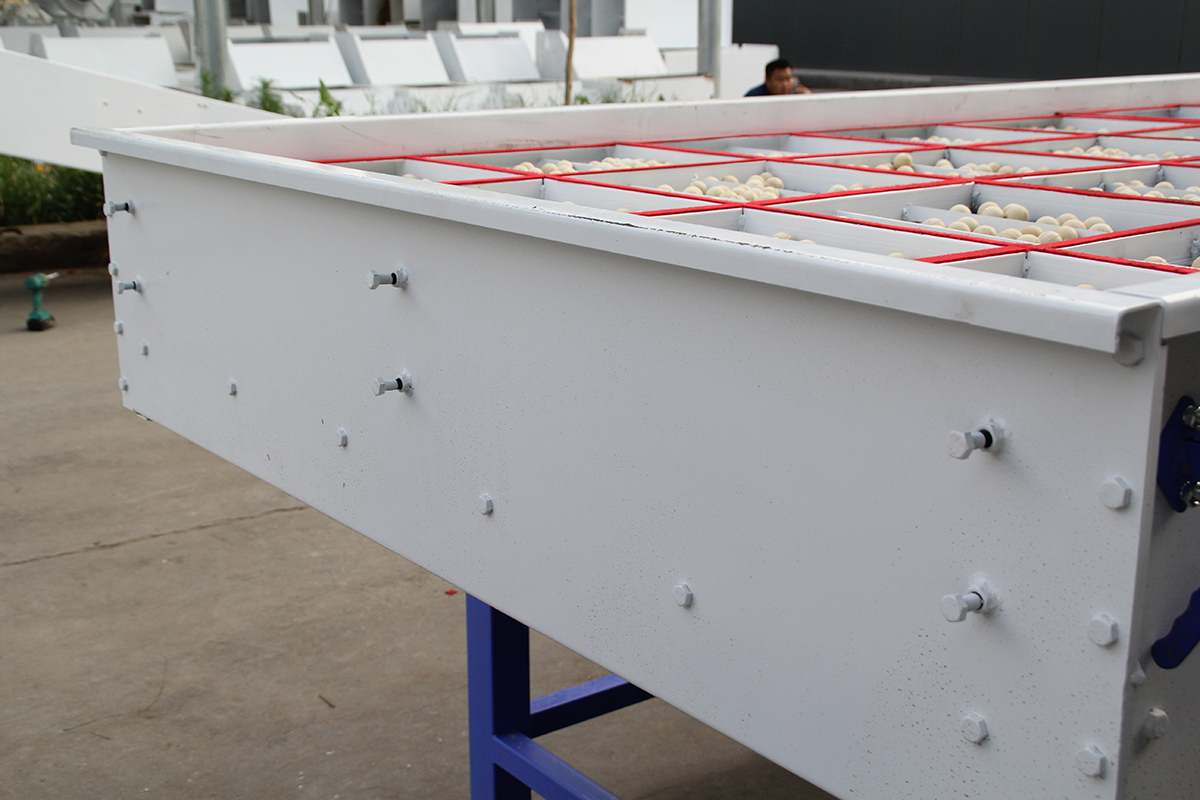

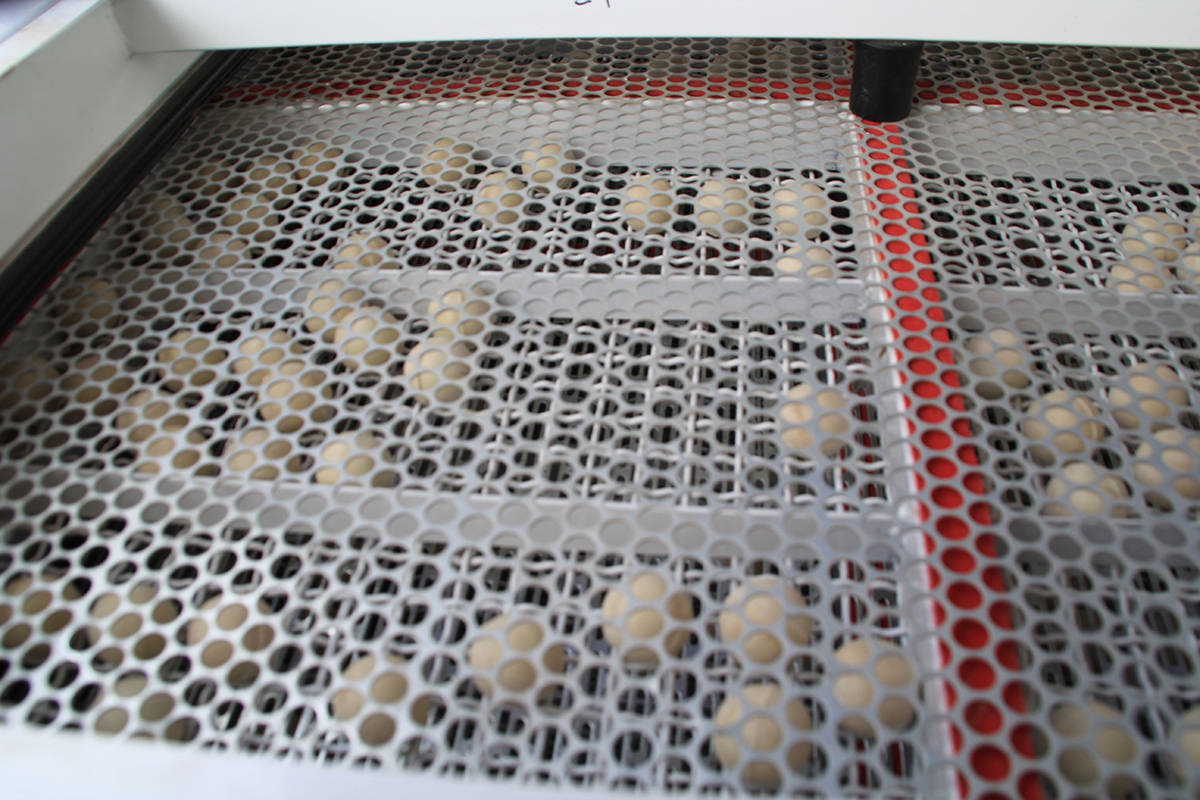

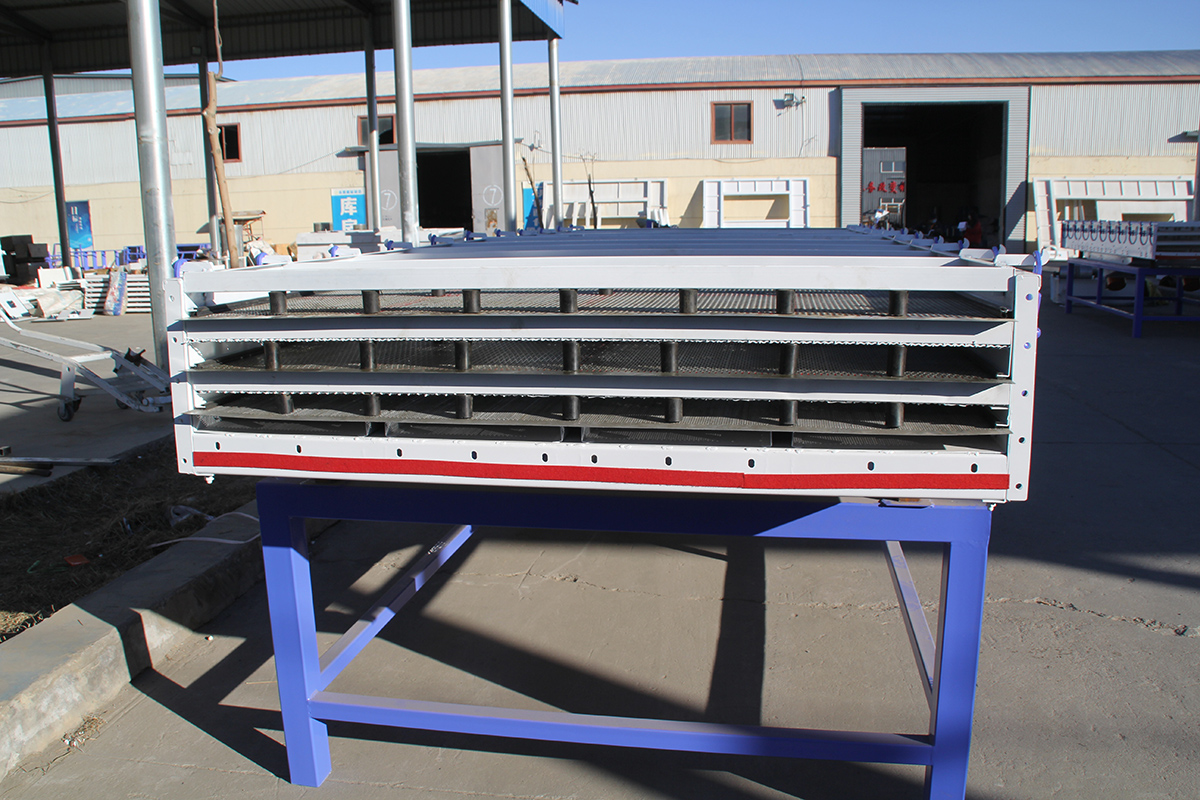

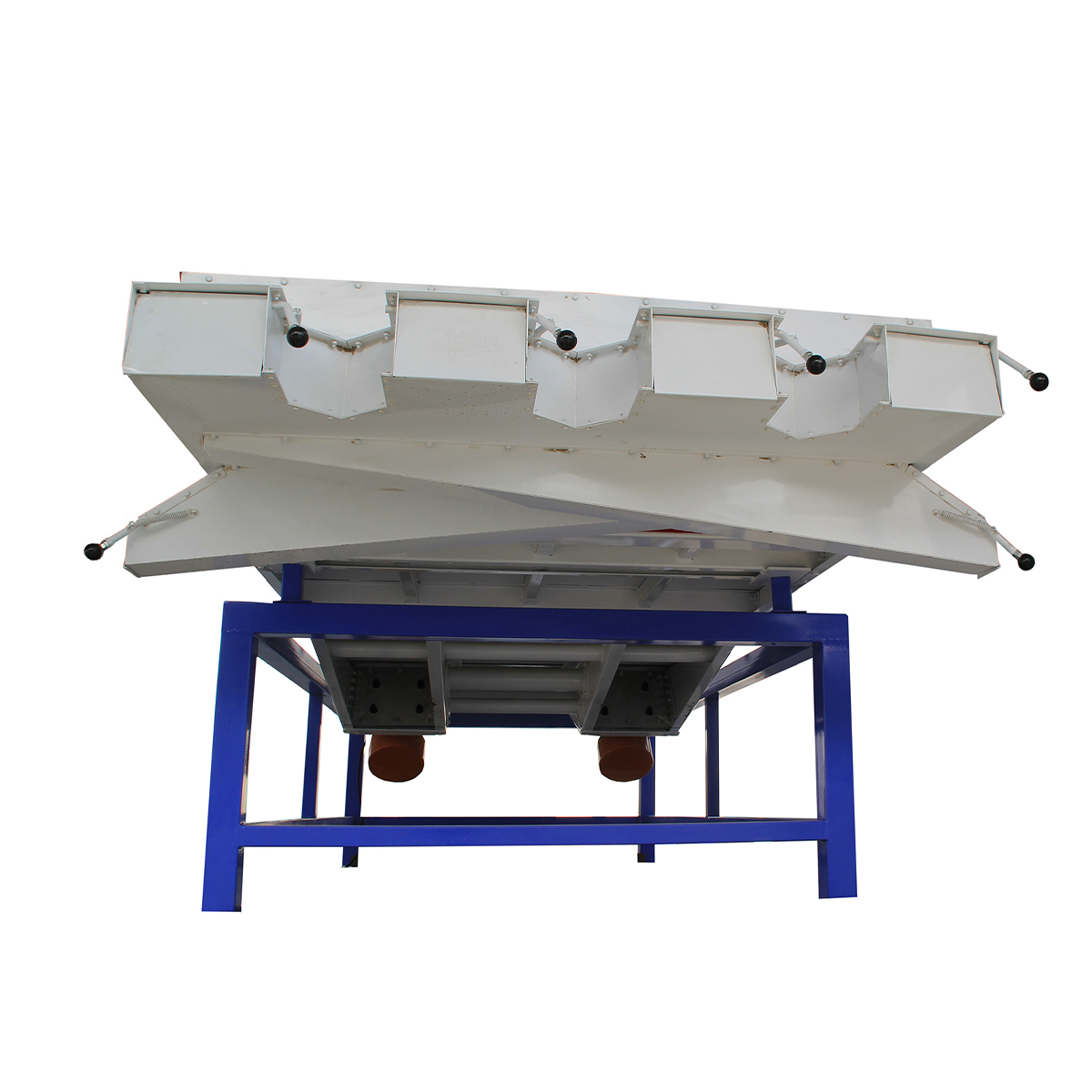

The grain grade cleaner is mainly used to size the different sizes of seeds, kernels, nuts, beans, etc. Automatic cleaning & grading procedure adopts dual vibrating motors, rubber shock absorber, different sizes of sieves and rubble balls. Materials are vibrated along sieving deck which has multi-layers, then are graded to different levels by size, while oversized and under sized impurities get removed. Customized various screen mesh and amount of sieve layers that make the vibration grader has high grading efficiency. Carbon steel or stainless steel can be chosen for quality standard of the screen materials. The product is installed behind the color sorting machine for a final quality control, or in front of the seeds shelling machine for pre-cleaning. An optimal design, efficient grading operation and compact structure makes it an ideal grading equipment.

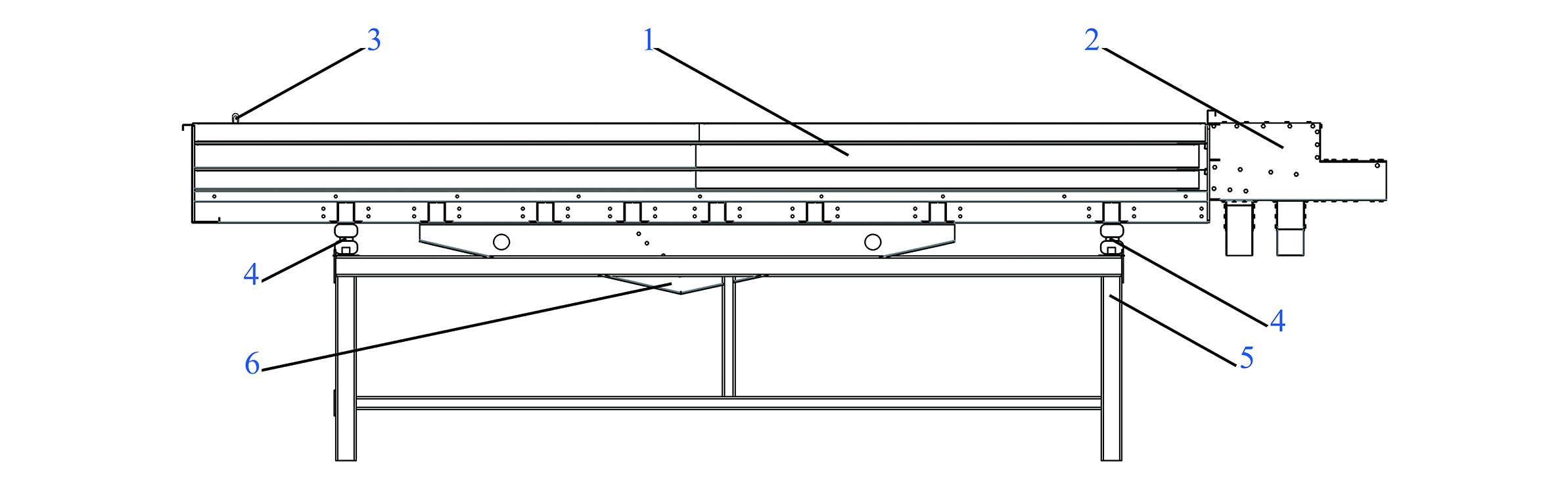

1. Screen body
2. 0utlet of finished products
3. Vibrating sieve locker
4. Rubber shock absorber
5. Frame
6. Vibration part
Product Features
Higher selecting effect
Wide range of application
Stable and reliable operation
Low power consumption
Easy replacement
Low maintenance rate
Compact structure
Model Parameters
| GRAIN GRADE CLEANER | |||||||
| Model | Dimension(L* W*H)/m | Sieve size(L*W)/m | Layer amount | Capacity(kg/h)*For sunflower seeds | Weight(t) | Power(kW) | Voltage(V) |
| YFS-126 | 4.80*1.42*1.38 | 4.00*1.25 | 3 | 1500~3000 | 0.9 | 1.5 | 380 |
| YFS-150 | 4.80*1.63*1.38 | 4.00*1.50 | 3 | 2000~4000 | 1.1 | 1.5 | 380 |
| YFS-350 | 3.50*1.29*1.38 | 2.83*1.25 | 3 | 1200~2500 | 0.7 | 1.1 | 380 |
