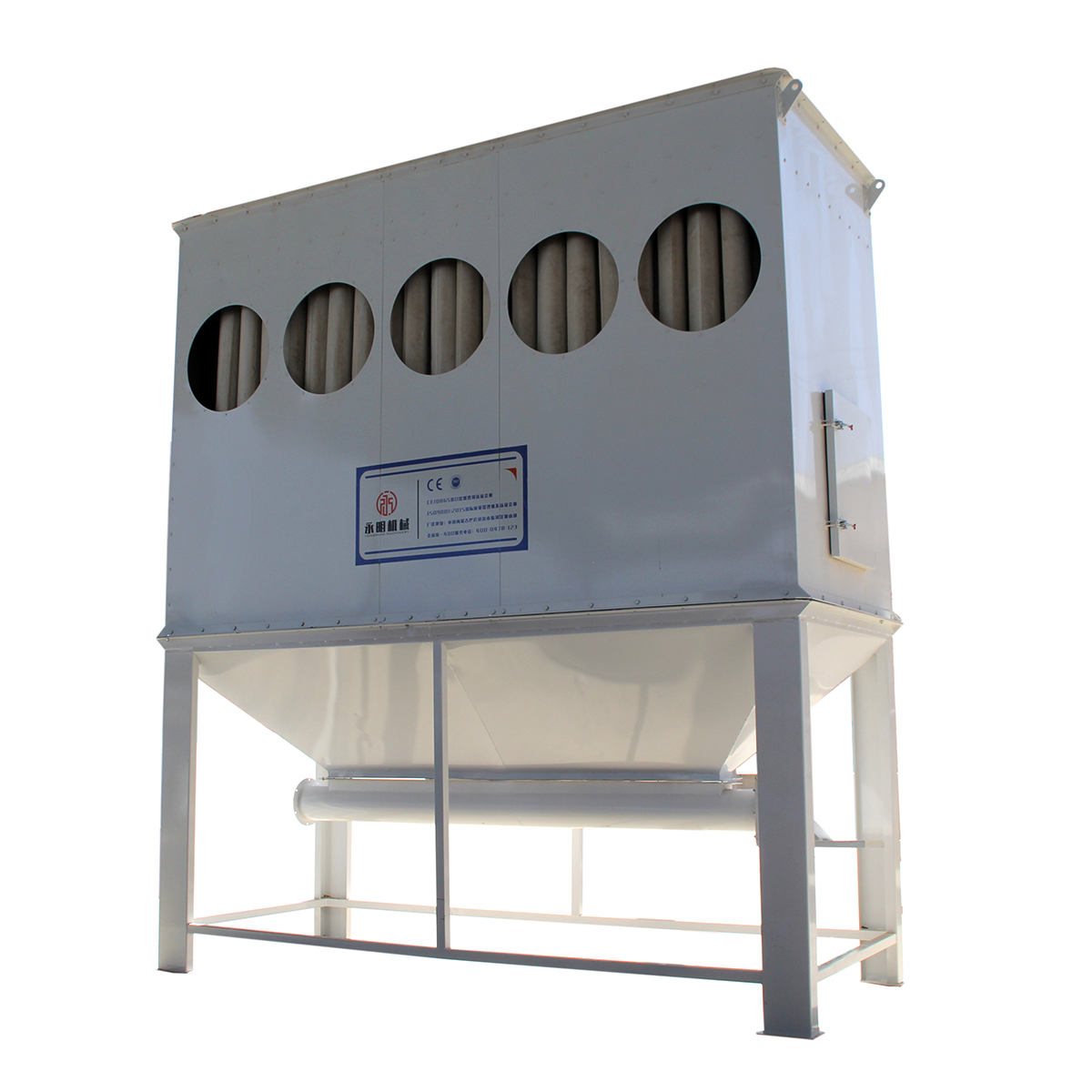

DMC Pulse-jet Bag Filter dust collector
The Pulse-jet bag filter dust collector is an environmentally protective product in our company. The dust collector is designed to collect and store dust and particulates from production and operation, it is widely used to clean air, recover valuable pollutants, and remove dust in many different industries including grain processing, woodworking, and mine excavating.
Service station over the country.
Provide relevant business resources for free overseas.
PRODUCT DESCRIPTION
The DMC pulse-jet bag filter dust collector is environmental protective product in our company. The dust collector designed to collect and store dust and particulate from production and operation, it is widely used to clean air, recover valuable pollutants and remove dust in many different industries including grain processing, woodworking,mine excavating.As dust accumulates on the filter bags, periodic cleaning of the bags in order to maintain continuous operation. This periodic cleaning of bags is achieved by introducing a timed,momentary pulse of compressed air through a blow pipe, with nozzles mounted above each filter bag. An equal amount of compressed air is blown vertically downwards into each bag, the high pressure compressed air creates a shock wave down each bag causing it to shake off the majority of dust formed around the outside, the removed dust is then collected in the chamber. This product is constructed from a series of modular components and flexible with sizing, materials of construction, filter media, and equipment arrangement.

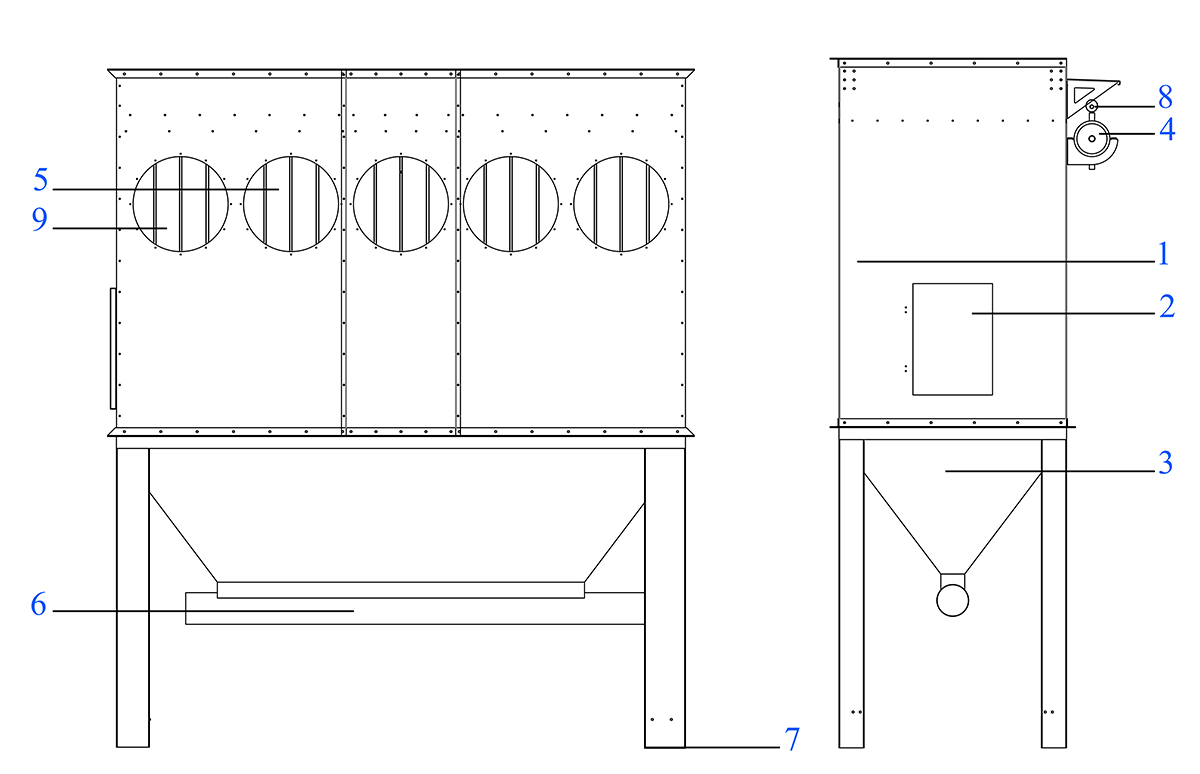

1. Dust removal body
2. Maintenance way
3. Dust chamber
4. Gasholder
5. Air intake

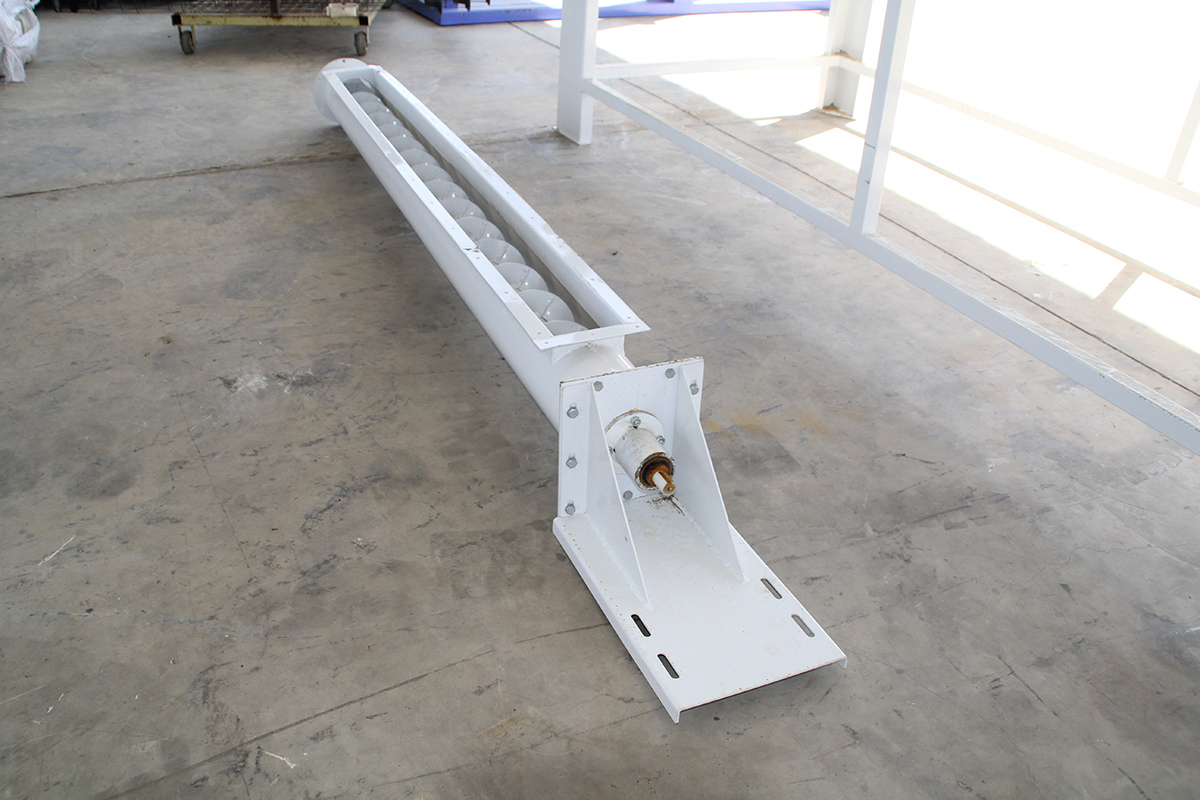

6. Dust screw conveyor
7. Frame

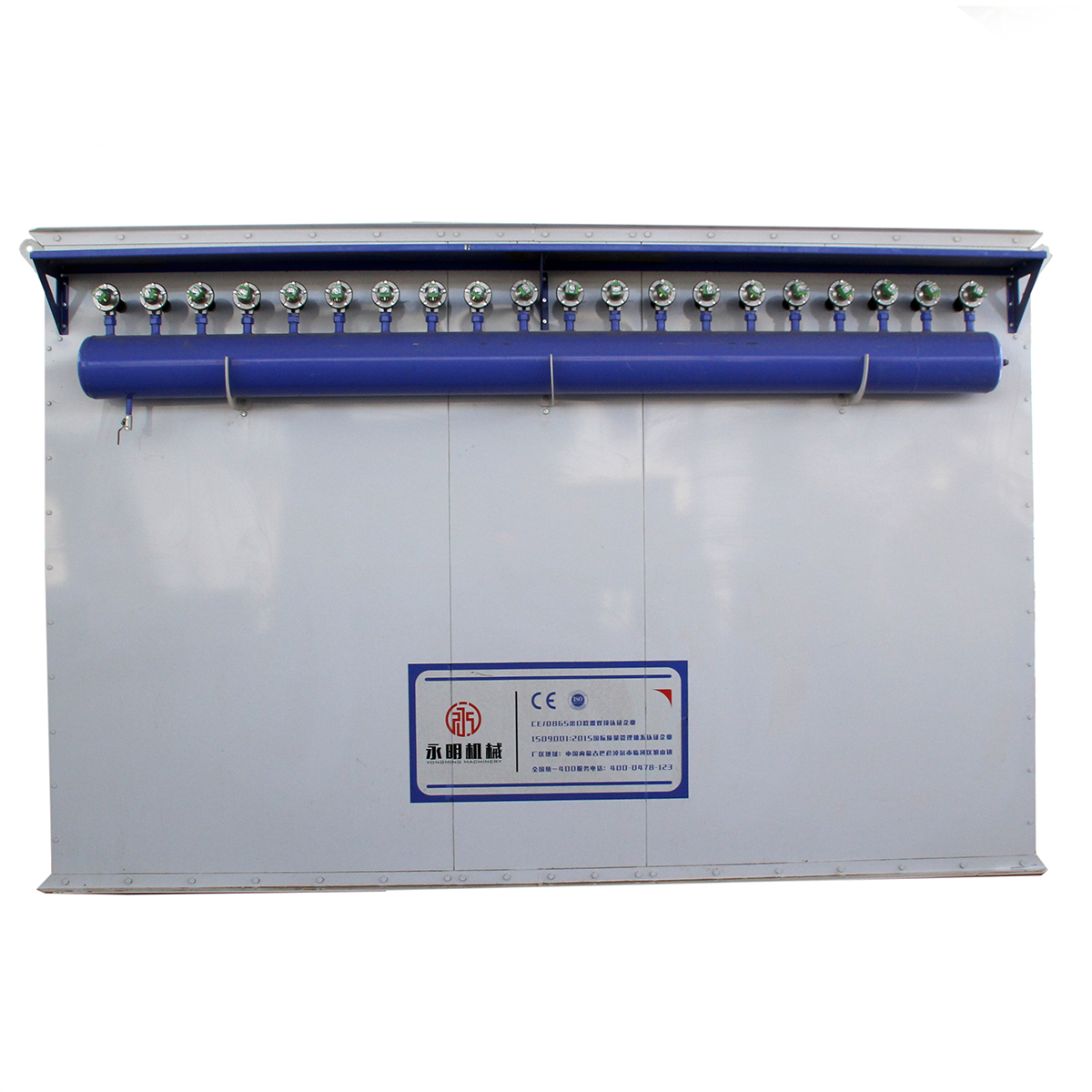

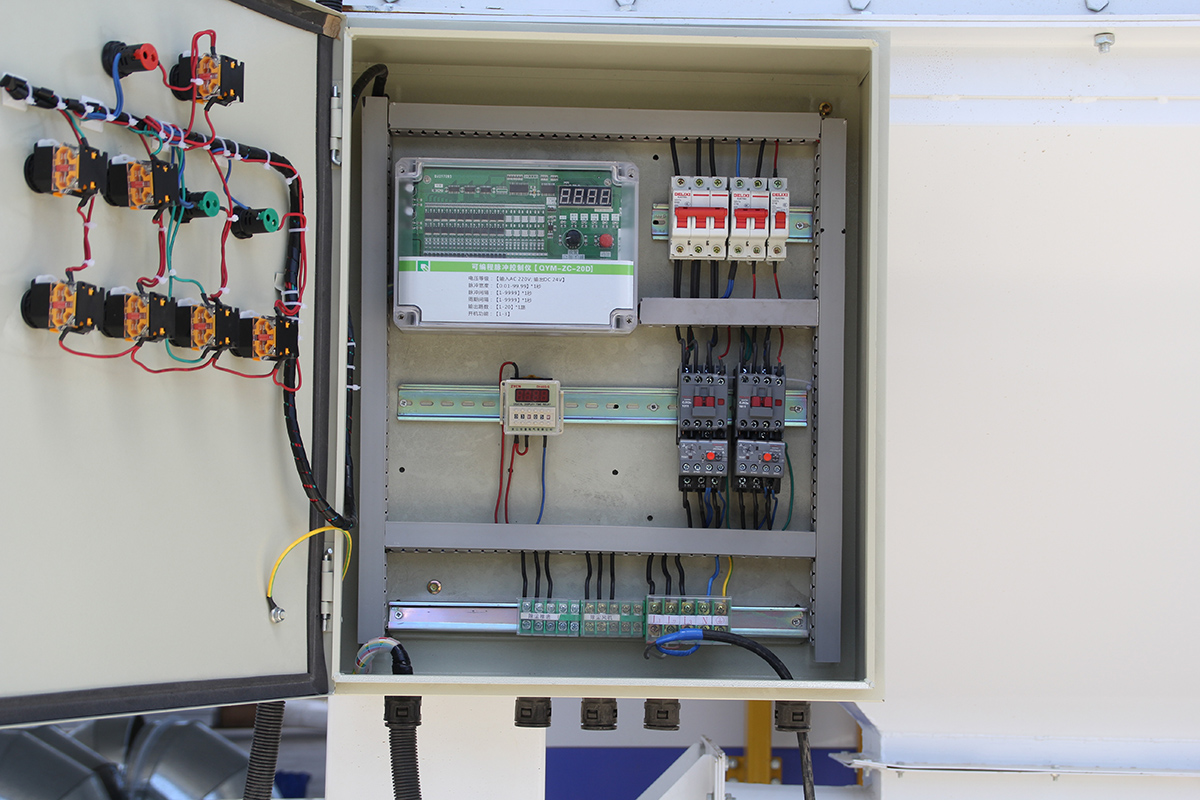

8. Pulse Valve
9. Pulse Valve

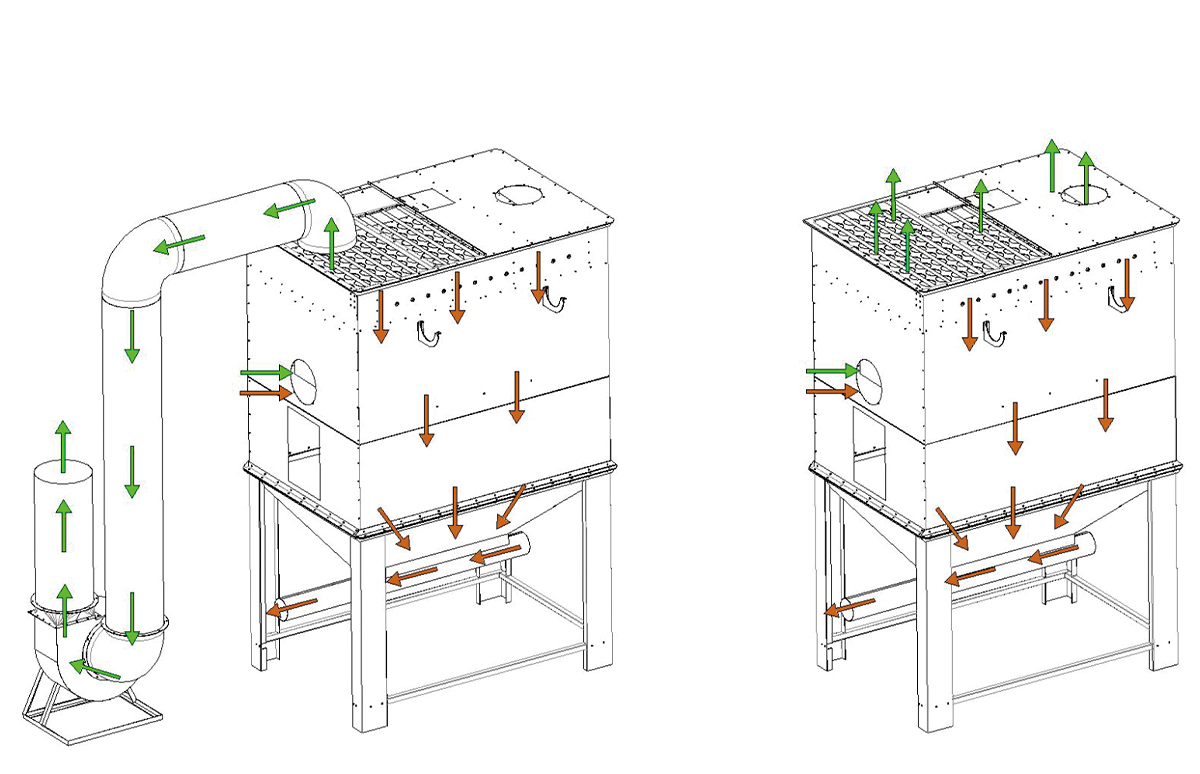

Cleaning Air
Dust
Product Features
High dust removal efficiency
Excellent purifying effect
Durable
Easy maintenance
Stable operation
Helpful adaptability can catch all kinds of dust
Model Parameters
|
DMC PULSE-JET BAG FITER DUSTCOLLECTOR |
||||||||
|
Model |
Air volume (m /h ) |
Amount of filter bag |
Length of filter bag (m) |
Amount of pulse valve |
Dimension(L* w*H/m |
Weight(t) |
Power(kW) |
Voltage(V) |
|
DMC-120 |
8760 |
120 |
2 |
12 |
2.90*2.12*4.48 |
1.7 |
0.75 |
380 |
|
DMC-200 |
14600 |
200 |
2 |
20 |
3.80*2.40*5.00 |
2.6 |
0.75 |
380 |
|
DMC-300 |
21900 |
300 |
2 |
25 |
4.20*2.35*4.85 |
3.5 |
0.75 |
380 |

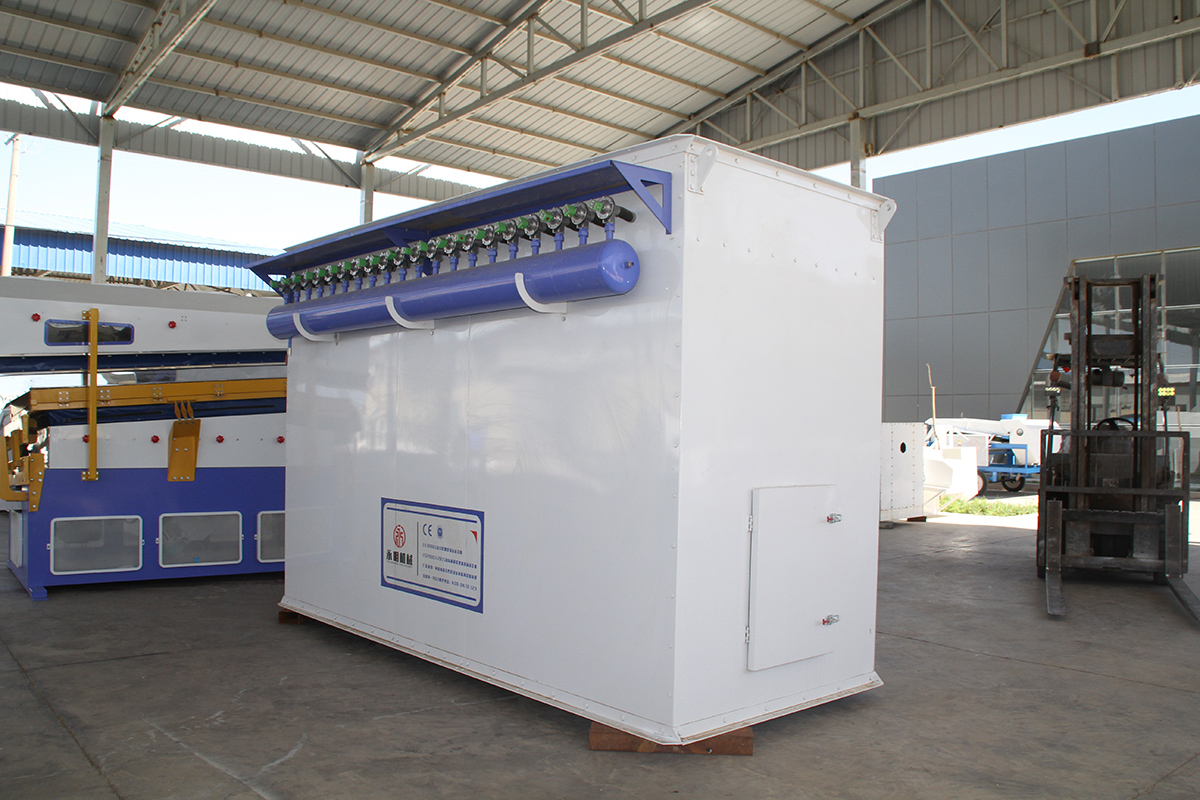

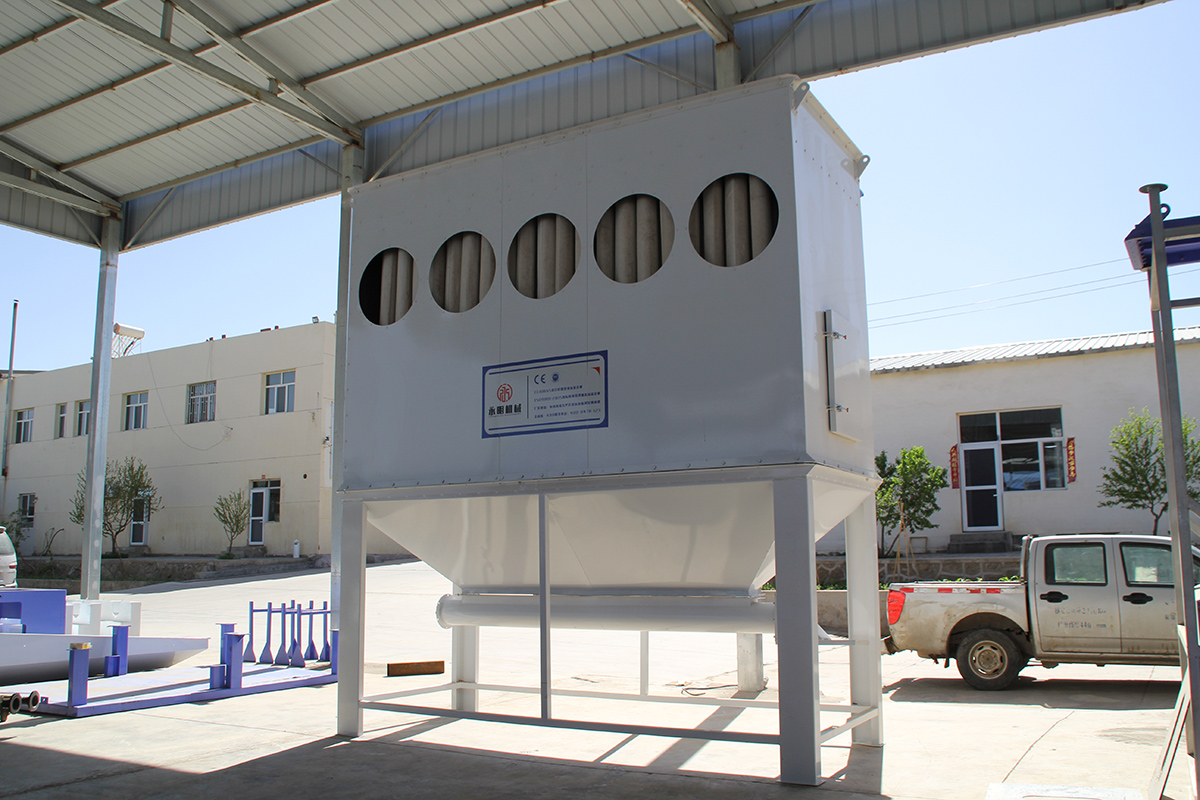

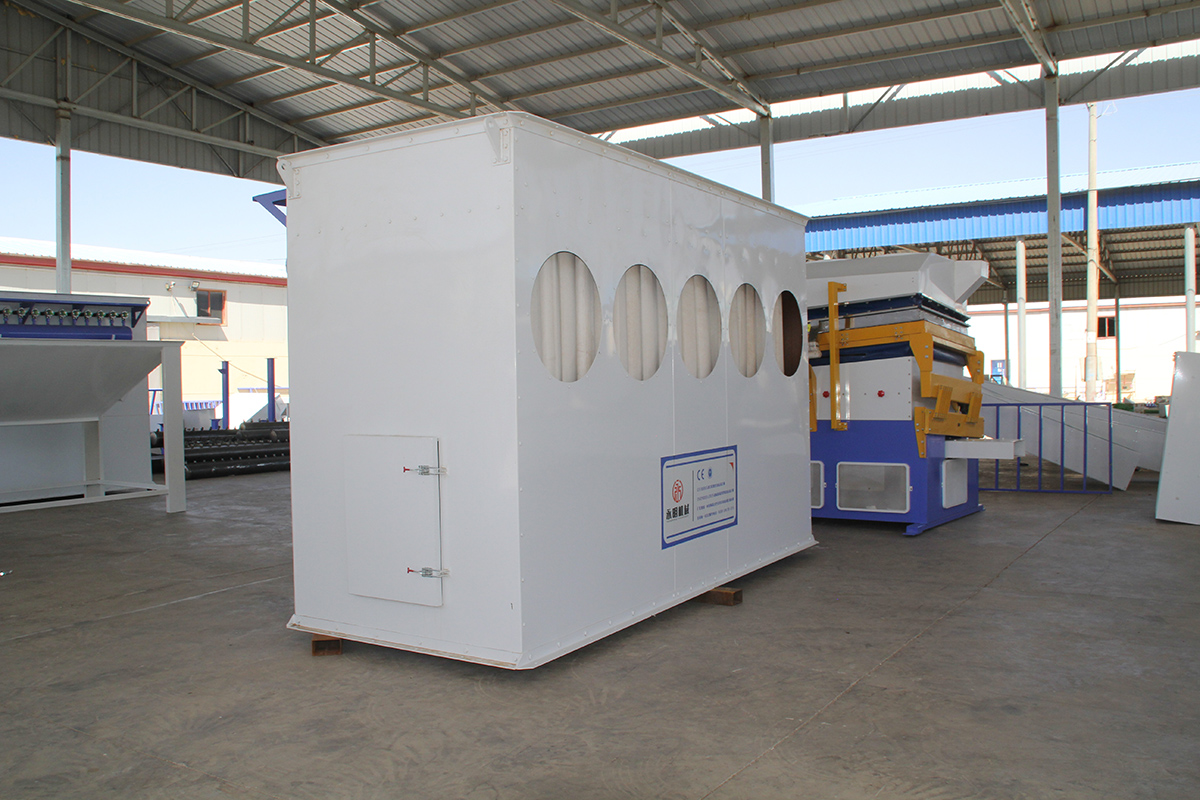

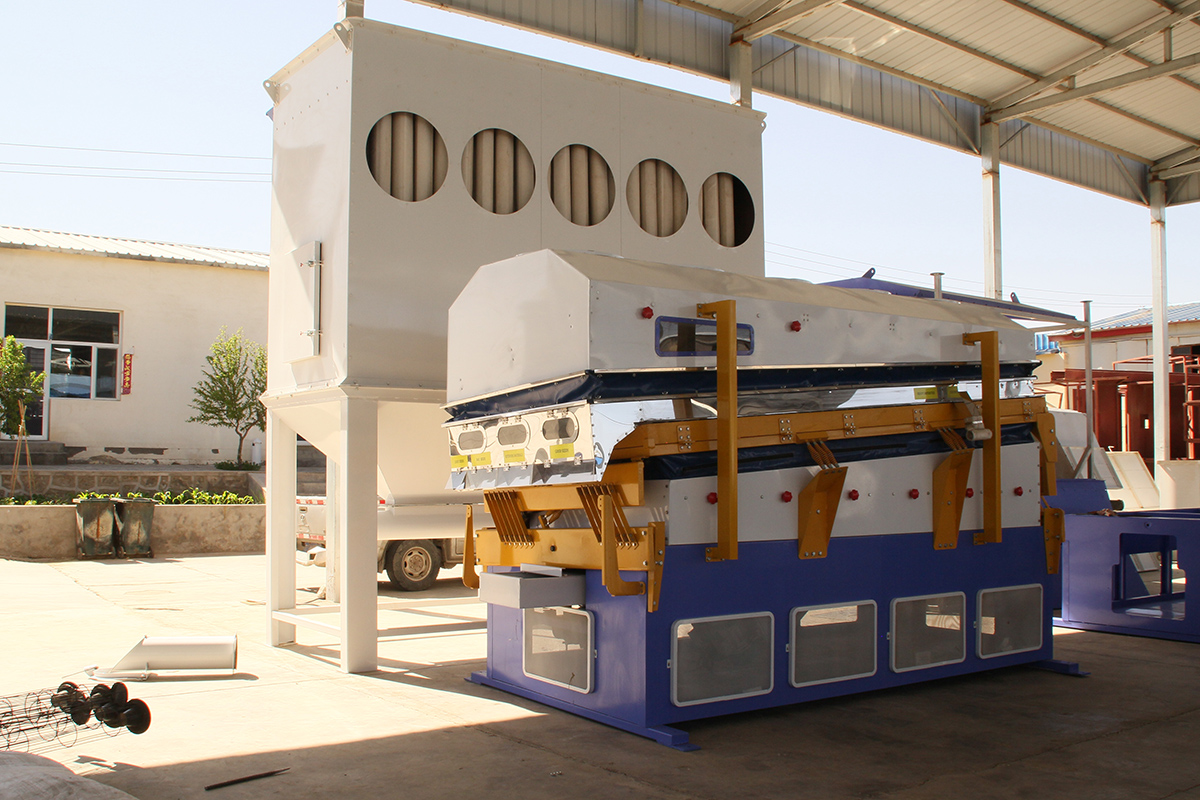

Product case
