Bucket Elevator

1.Bucket Elevator: High-efficiency vertical lifting equipment for cereals, seeds, fertilizers and other granular materials in processing lines.

2.Designed with buckets, belt and sprockets; materials fed and discharged by gravity, with stable running and low grain damage.

3.Fully customizable: height, bucket width and material can be tailored to match different plant layout requirements.

4.Weather-proof, dust-proof and safety-guarded structure; supports platform/pit feeding for maximum throughput and easy maintenance.

Service station over the country.

Provide relevant business resources for free overseas.

product details

PRODUCT DESCRIPTION

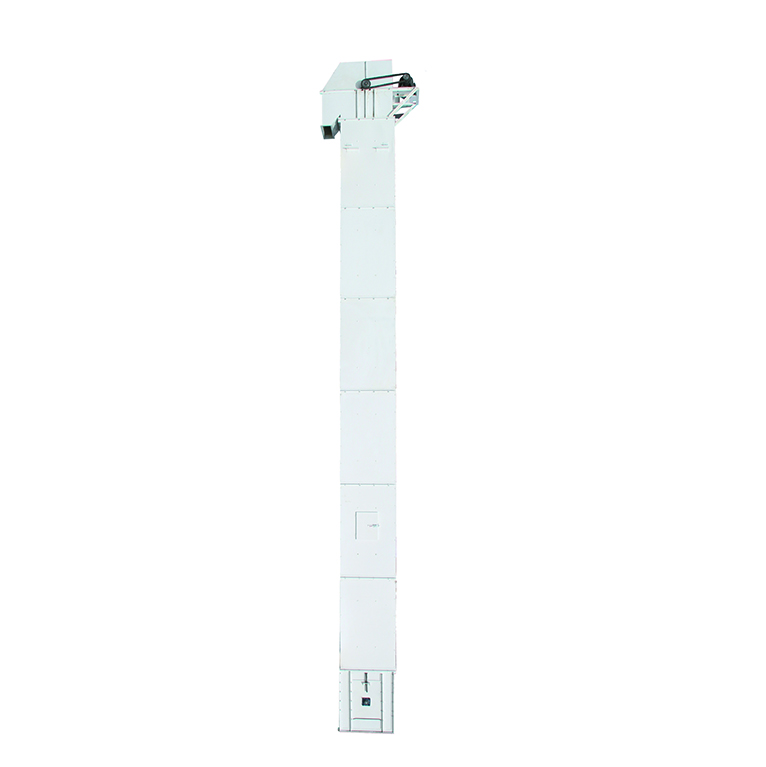

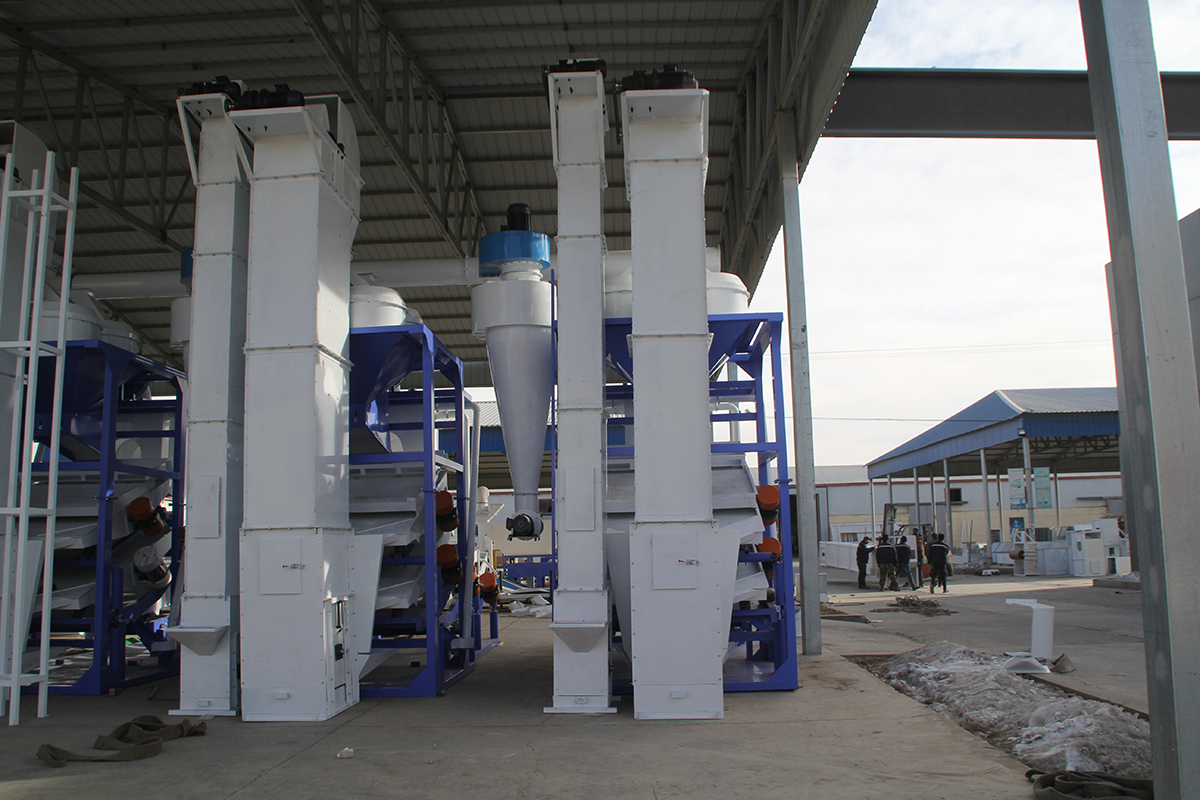

Bucket Elevator: Commercial Vertical Lifting Solution for Granular Bulk Materials

1.High-Efficiency Vertical Lifting Performance

Bucket Elevator is professional vertical lifting equipment ideal for cereals, seeds, fertilizers and other granular materials. It runs stably with high lifting efficiency, reduces grain damage and maximizes material throughput for processing lines.

2.Stable Gravity Feeding & Discharging System

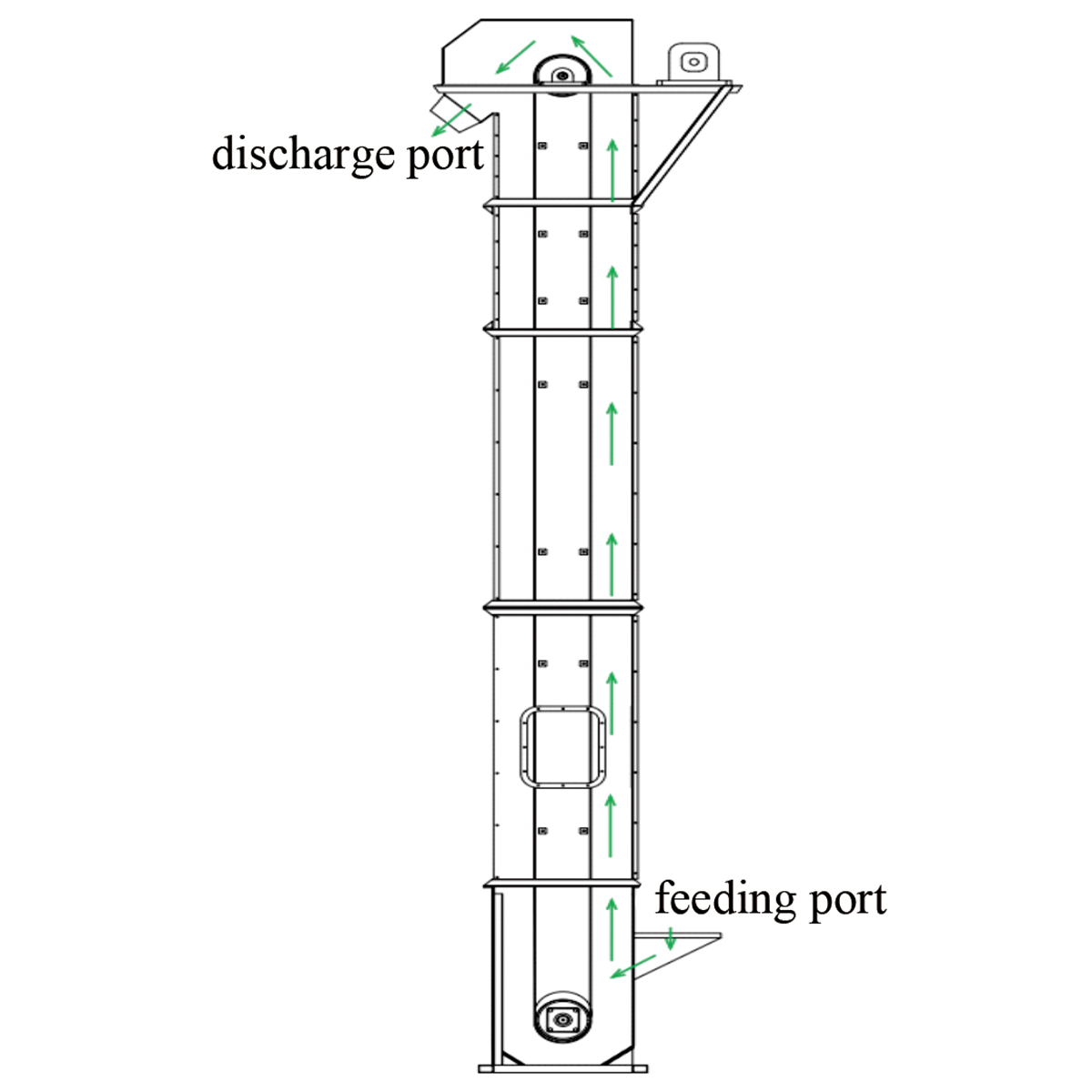

Composed of buckets, belt and top-bottom sprockets, it uses gravity to feed and discharge materials automatically. The steady structure ensures continuous lifting and reliable working performance for long-term production.

3.Fully Customizable for Plant Layouts

Machine height, bucket width and material can all be customized to meet different plant layout requirements. Its flexible design adapts to various production sites and achieves perfect matching with your processing system.

4.Weather-Proof, Dust-Proof & Safe Design

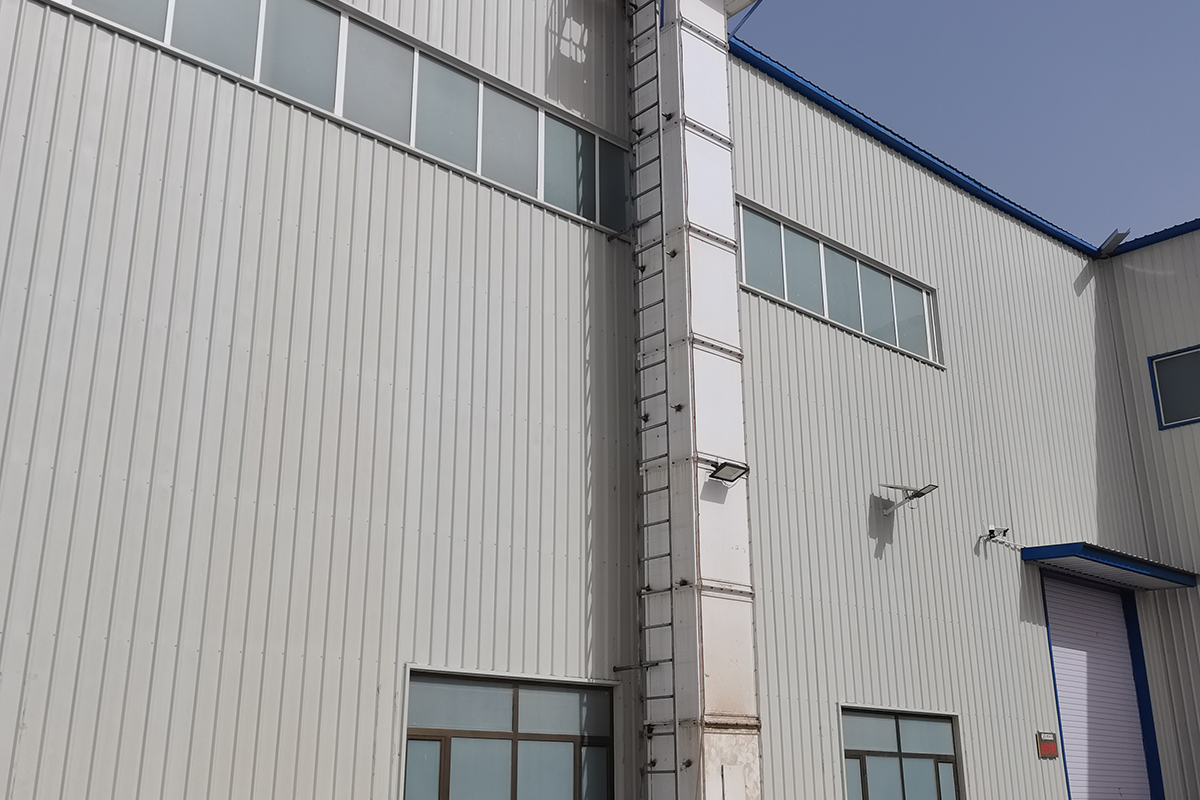

With weather-proof and dust-proof structure, it is equipped with safety guards and maintenance platform. It supports platform or pit feeding, ensuring high durability, easy maintenance and safe, clean operation.

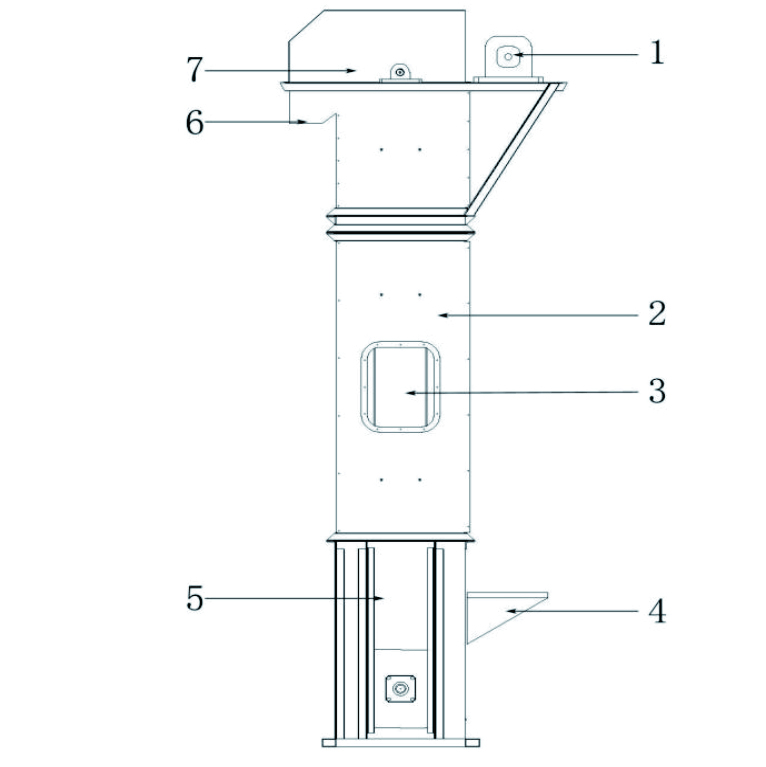

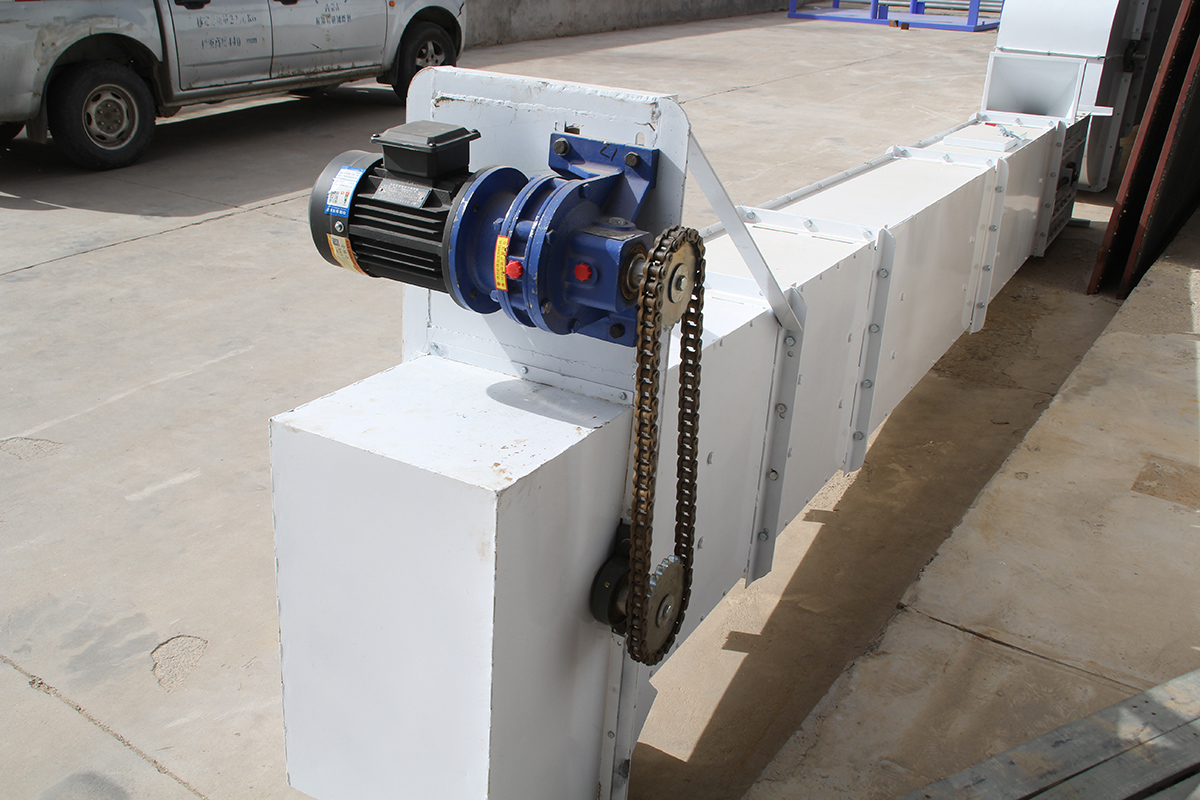

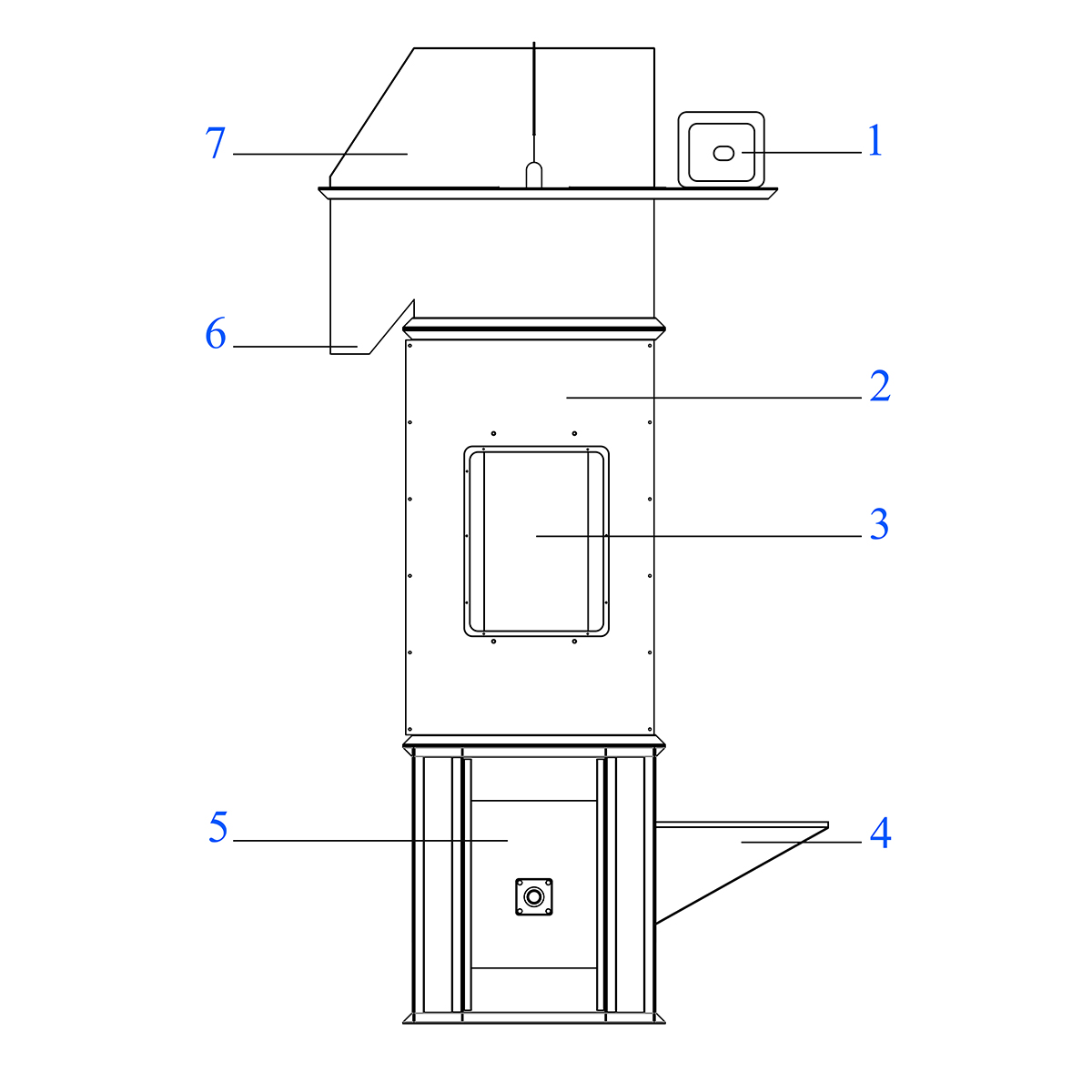

1. Geared motor

2. Machine body

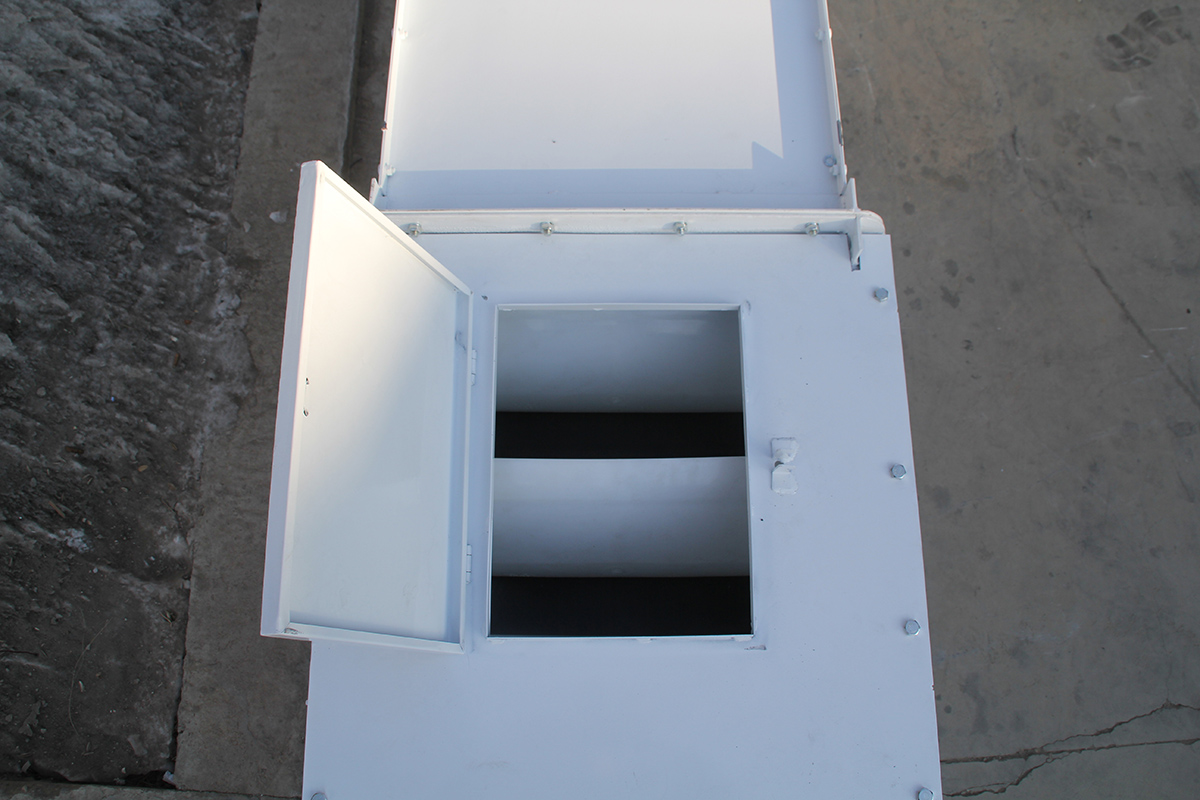

3. Inspection door

4. Feeding hopper

5. Base

6. Discharge port

7. Machine head

Product Features

1.Durable

2.Flexible construction

3.High conveying capacity

4.Totally enclosed design for maximum security

Model Parameters

BUCKET ELEVATOR
Model	The conveying capacity (m³) *Free flowing materials	Belt speed (FPM) (m/min)	Dimension *(LW)/m**	Power (kW)	Voltage (V)
LS25	28	34	0.640.440.71	1.5~4.0	380
LS30	63	36	0.900.490.95	2.2~4.0	380
LS40	47	36	0.940.611.00	2.2~4.0	380
LS50	77	63	1.030.711.55	2.2~4.0	380
LS80	100	36	1.050.971.00	4.0~7.5	380
