5XZ-1480B Blow Type Gravity Separator

5XZ-1480B Blow Type Gravity Separator

1.Upgraded 5XZ-1480B Blow Type Gravity Separator: Optimized structure boosts capacity, 4000 kg/h for sunflower seeds.

2.Precision specific gravity separation: Removes shrivelled/empty seeds, moth-eaten grains & stones effectively via air & vibration.

3.Wide application range: Ideal for wheat, corn, sunflower/pumpkin/watermelon seeds, beans & oil crops sorting.

4. Adjustable parameters (wind pressure/amplitude): Ensures customized sorting, enhancing product purity & commercial value.

Service station over the country.

Provide relevant business resources for free overseas.

product details

PRODUCT DESCRIPTION

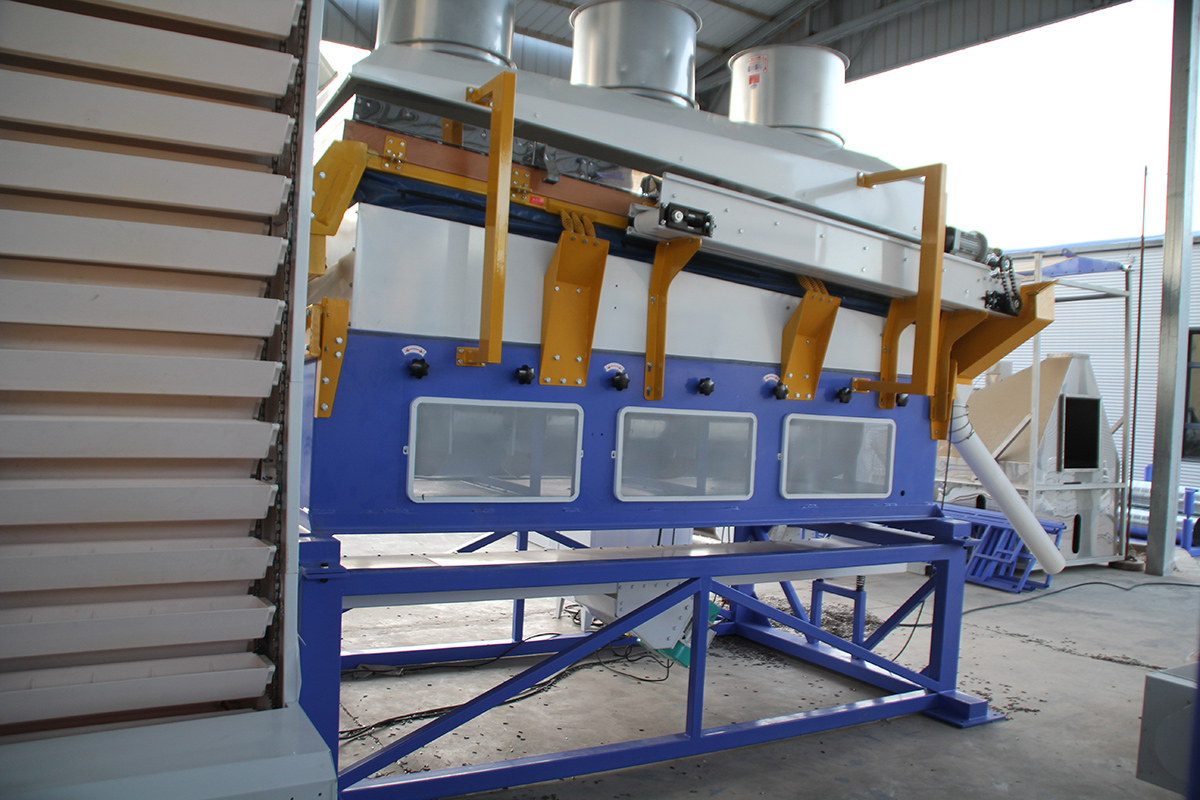

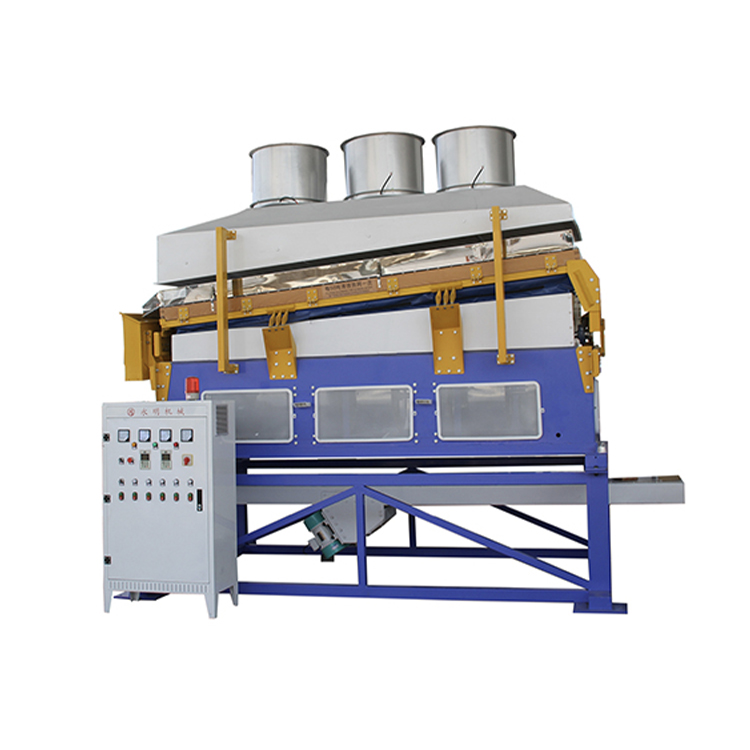

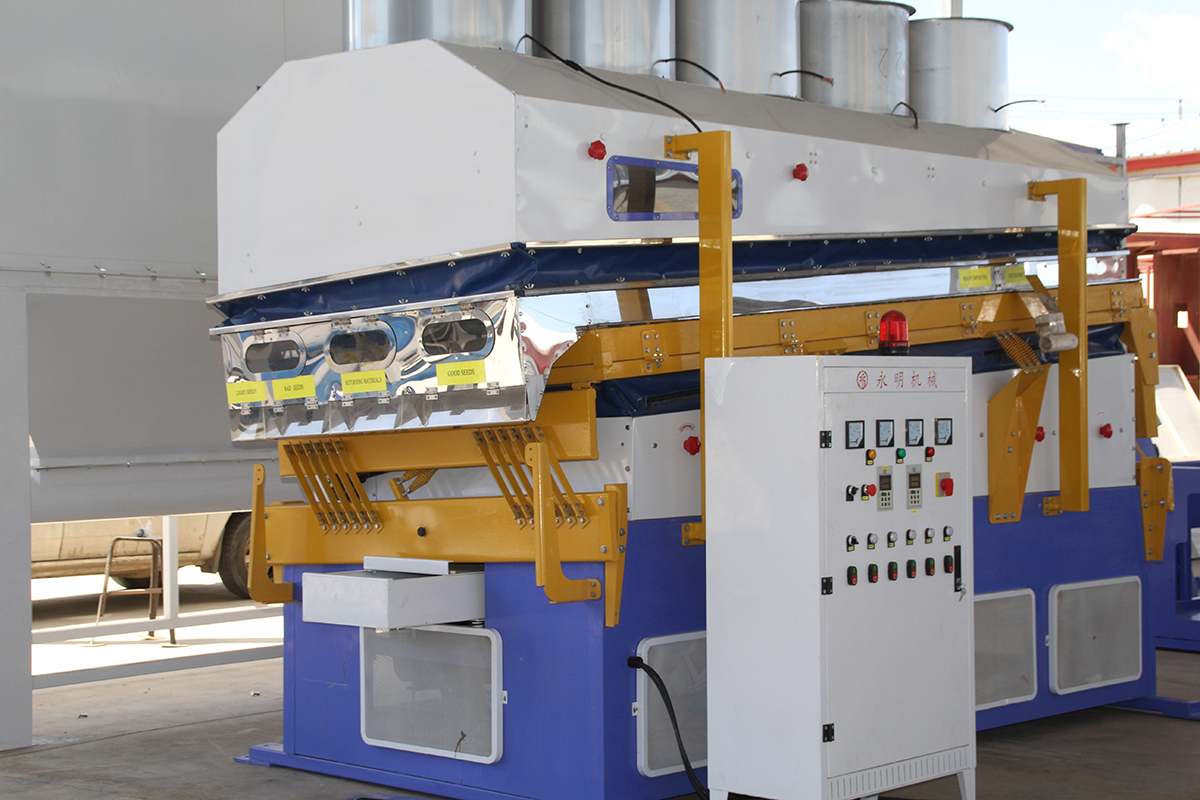

5XZ-1480B Blow Type Gravity Separator: Industrial-Grade Seed & Grain Specific Gravity Sorting Equipment

1.Upgraded Structure & High-Capacity Performance

Independently developed by ISORT YM, this blow type gravity separator features an optimized structure that significantly boosts production efficiency. With a processing capacity of 4000 kg/h for sunflower seeds, it supports large-scale continuous processing, meeting the high-yield demands of commercial grain and oil processing enterprises.

2.Precision Sorting via Air & Vibration Technology

Adopting positive pressure air movement and vibration principles, the machine achieves accurate specific gravity separation. By adjusting technical parameters like wind pressure and amplitude, heavier materials sink while lighter ones drift upward, ensuring precise sorting of grains by density for consistent product quality.

3.Comprehensive Impurity Removal & Stone Separation

Effectively eliminates shrivelled seeds, empty seeds, moth-eaten grains, immature grains, straw, and stones—thanks to a built-in stone removal channel. This thorough cleaning protects downstream equipment and enhances the purity of finished products, elevating their commercial value.

4.Wide Application & Customizable Sorting

Versatile for sorting wheat, corn, sunflower seeds, pumpkin seeds, watermelon seeds, beans, and various oil crops. It adapts to materials with different thousand-grain weights and uniformity, offering customizable sorting solutions to meet diverse processing needs across the agricultural industry.

KTF5-3000 SUNFLOWER SEEDS DEHULLER (2)cft

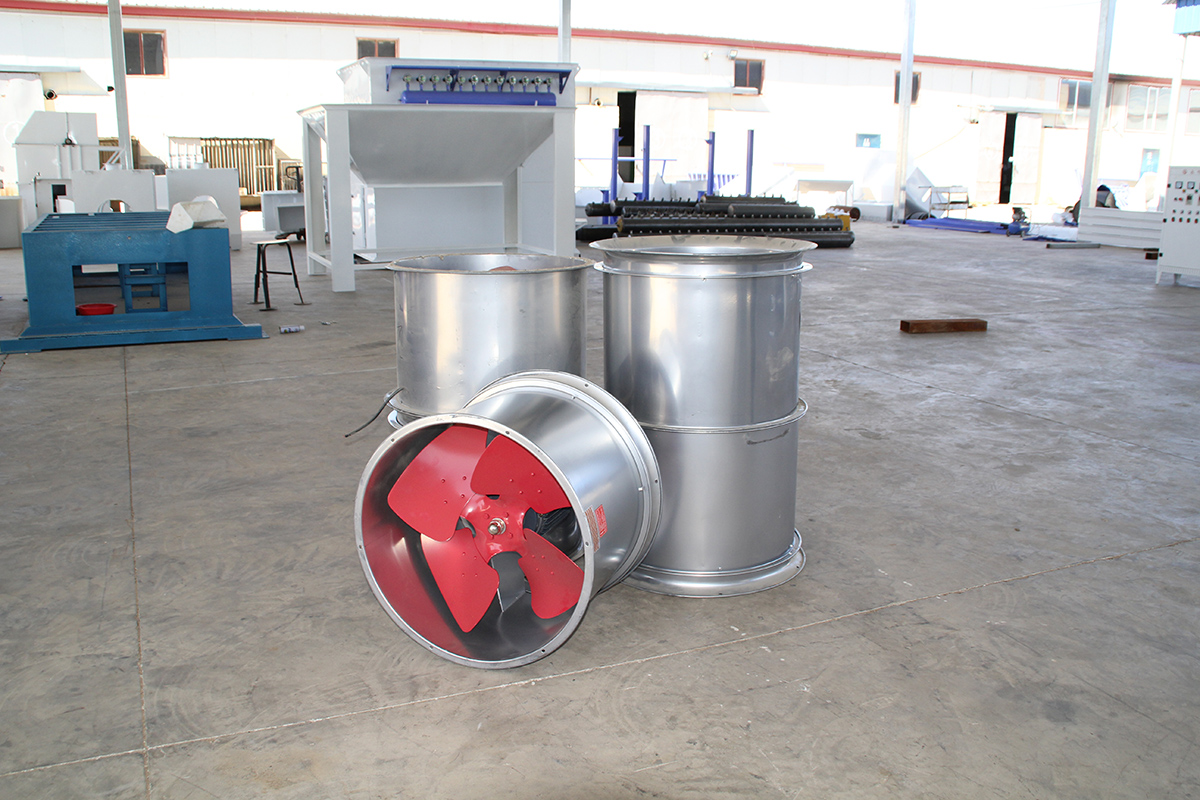

1.Axial Flow Fans

2.Adjustable Tuyere

3.Dust Removal Cover

4. Drive shaft

4.Gravity Platform

5.Large Materials Conveyor Belt

6.Waste Materials Outlet

7.Mixing Materials Outlet

8.Finished Materials Outlet

9.Machine Body

10.Wind-box

11.Vibrating Trough

12.Vibration motor

KTF5-3000 SUNFLOWER SEEDS DEHULLER (1)2n9

Finished Materials

Mixing Materials

Waste Materials

Product Features

Higher selecting effectOutstanding efficiency in stone removal

Higher processing capacity

Reliable quality

Easy installation

Frequency converter application

Model Parameters

BLOW TYPE GRAVITY SEPARATOR
Type	Blow type	5XZ-1480B
Capacity(kg/h) *For sunflower seeds	2300~2800	4000
*Size of screen (LW)**	3.08*1.38	3.26*1.5
*Dimension (LWH)/m*	3.611.881.62	4.512.482.10
Selecting rate	99%	99%
Weight(t)	1.8	2.2
Power(kW)	10.8	14.11
Voltage(V)	380	380
