TQSX-125 Grain De-Stoner
The Grain De-Stoner is designed for the effective removal of stones and iron, dirt, glass, and other heavy materials from crops, i.e. sunflower seeds, kernels, watermelon seeds, wheat, rice, etc.
Service station over the country.
Provide relevant business resources for free overseas.
PRODUCT DESCRIPTION
The grain de-stoner is designed for effective removal of stones and iron, dirt,glass and other heavy impurities from crops, i.e. sunflower seeds, kernels, watermelon seeds and wheat, etc. The materials passes on an inclined vibration screen with fish-skin, Materials and high density waste are separated using upward current air passed with the help of a dust removal. The heavy impurities (stones)fall through the air stream and are discharged from stone outlets. Grains suspended then sink down to grains outlet, Air volume and angle of screen can be adjusted to meet an optimal degree of separation according to different materials, In addition,the excellent removal of high-density impurities likes tones protects the downstream processing equipment and thus perceptibly reduces its wear and tear.

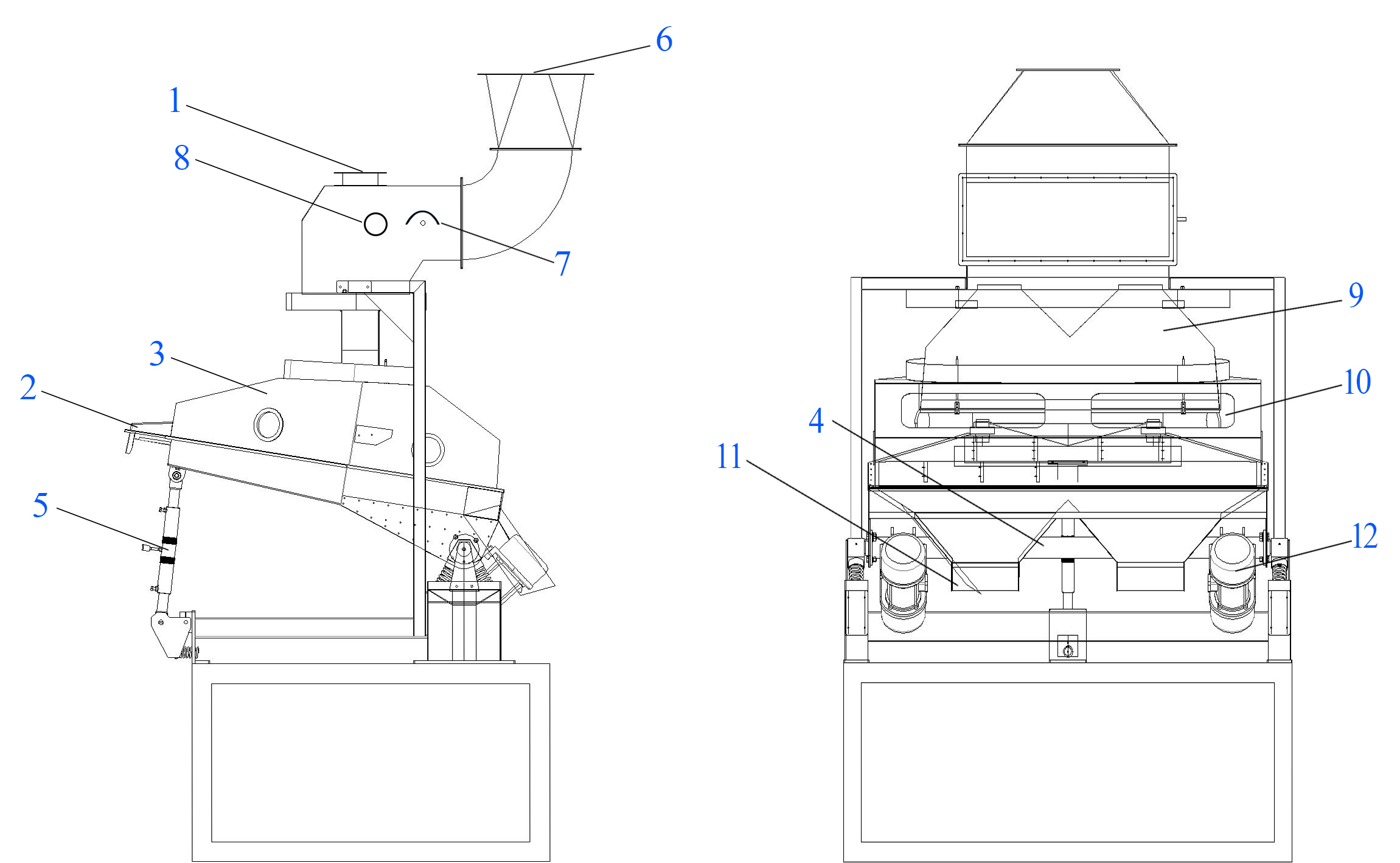

1.Materials inlet
2.Stone outlet
3.Screen body
4. Drive shaft
5.Adjustive screw
6.Wind box
7.Regulator of air volume
8.The differential pressure
9.Connector
10.Observation hole
11.Finished product outlet
12.Vibration motor
Product Features
Outstanding efficiency in stone removal
Smooth operation
High capacity
Wide range of application
Model Parameters
|
12S MODEL DE-STONER |
|||
|
Capacity (kg/h)"For sunflower seeds |
2000-4000 |
Stone separating rate≥97% |
|
|
Dimension(L* W* H)/m |
1.90*1.48*2.17 |
Air volume (m³/h ) |
4800-6200 |
|
Vibration frequency(r/min) |
2200 |
Sieve amplitude(mm) |
8-12 |
|
Adjustable sieve range(°) |
15 |
Weight(t) |
0.5 |
|
Power(kW) |
0.5 |
Voltage(V) |
380 |
